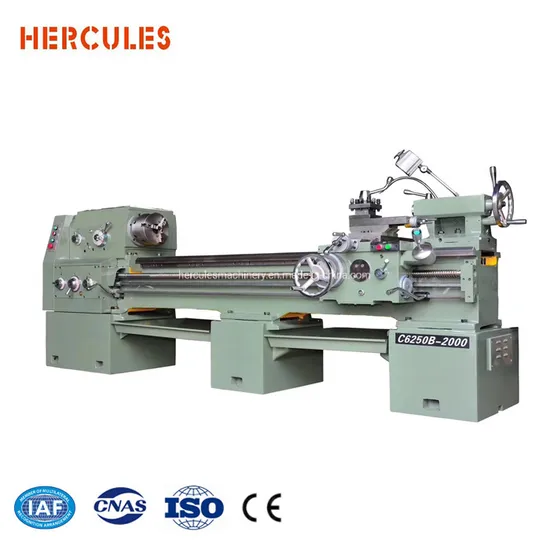

C6250Bx2000 Torno Conventional Metal Bench Turning Lathe Milling Cutting machine
| US$10,200.00-12,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
C6250Bx2000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Bed Type
Normal/Gap
Spindle bore
82mm
Transport Package
Pallet
Specification
3500*1150*1300
Trademark
Hercules
Origin
China
HS Code
8458190000
Production Capacity
8000 Sets/Year
Product Description
| Specification | Unit | C6250Bx2000 |
| Swing Over Bed | mm | 500 |
| Swing Over Cross Slide | mm | 300 |
| Distance between centers | mm | 2000 |
| Swing Over Gap | mm | 710 |
| Width of gap | mm | 240 |
| Length of gap | mm | 390 |
| Spindle Nose | D8 | |
| Spindle bore Diameter | mm | 82 |
| Morse taper of spindle center | M6 | |
| Spindle speed | rpm | 9-1600(24 steps) |
| Max output torque of spindle | N.m | 1500 |
| Longitudinal Feed | mm/rev | 0.028-6.43 |
| Cross Feed | mm/rev | 0.012-2.73 |
| Lead screw pitch | 12mm(Metric)/2TPI(US) | |
| Metric threads | mm | 48 kinds 0.5-224 |
| Inch system threads | TPI | 46 kinds 72-1/8 |
| Module threads | mm | 42 kinds 0.5-112 |
| Diameter pitch threads | DP | 45 kinds 56-1/4 |
| Cross Slide Travel | mm | 340 |
| Top Slide Travel | mm | 150 |
| Section specification of tool post | mm | 25x25 |
| Longitudinal rapid traveling speed | m/min | 4.5(50Hz)/5.4(60Hz) |
| Transversal rapid traveling speed | m/min | 1.9(50Hz)/2.3(60Hz) |
| Morse taper of tailstock center | MT5# | |
| Max travel of tailstock quill | mm | 150 |
| Tailstock quill diameter | mm | 75 |
| Main Motor | kw | 7.5 |
| Rapid travel motor | 250W/1360rpm | |
| Coolant Pump Motor | 90W/25L/min | |
| Gross/Net weight | kg | 3200/2800 |
| Machine size | mm | 3500x1150x1300 |
| Package size | mm | 3750x1120x1940 |
| Hercules Machinery Equipment Ltd. | ||
Standard Accessories:
1. Three Jaw Chuck
2. Coolant system
3. working light
4. Operation Manual
Optional Accessories:
1. 2-AXIS DRO
2. Foot brake
3. Steady rest
4. Follow rest
5. Face plate
6. Chip guard
7. 4-jaw Chuck
