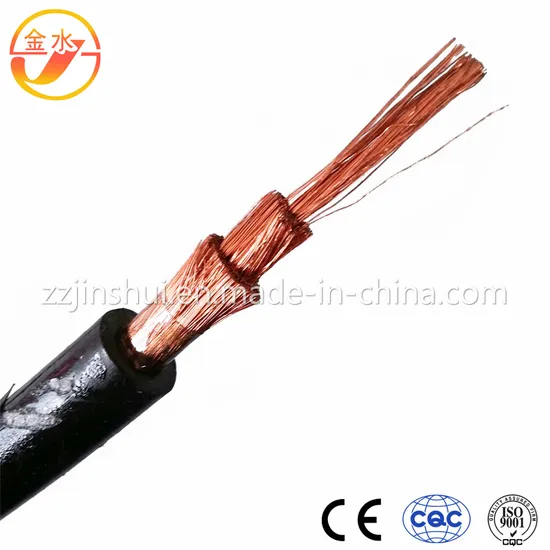

Factory Sale 16mm2 25mm2 70mm2 Flexible Rubber Welding Cable
| US$0.35-3.50 | 500 Meters (MOQ) |
Basic Info.
Model NO.
25mm2
Application
Underground
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
Rubber
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CE, CCC
Brand
Jinshui
Transport Package
Drum
Specification
1.1*1.1
Trademark
JINSHUI
Origin
Zhengzhou Henan
HS Code
4107961636
Production Capacity
50000km/Month
Product Description
Welding Cable Rubber Welding CableDetailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature
| Model | Name | Main applications | Working temperature of core ≤0C |
| 60245-81(YH) | Natural Rubber Sheath for Welding Cable | Always used indoor | 65 |
| 60245-82(YHF) | Neoprene Rubber Sheath Welding Cable | Always used outdoor | 65 |
| Synthetic elastomer Sheath Welding Cable |
4th. Specifications, Size, Technical Data
| Conductor Nominal Section (mm2) | Conductive Core | Average Outer Diameter (mm) | 200C Conductor Resistance≤(Ω/km) | |
| Number/Diameter of Core(mm) | Min | Max | ||
| 16 | 513/0.20 | 9.2 | 11.5 | 1.16 |
| 25 | 798/0.20 | 10.5 | 13.0 | 0.758 |
| 35 | 1121/0.20 | 11.5 | 14.5 | 0.536 |
| 50 | 1596/0.20 | 13.5 | 17.0 | 0.379 |
| 70 | 2214/0.20 | 15.0 | 19.5 | 0.268 |
| 95 | 2997/0.20 | 17.0 | 22.0 | 0.198 |
