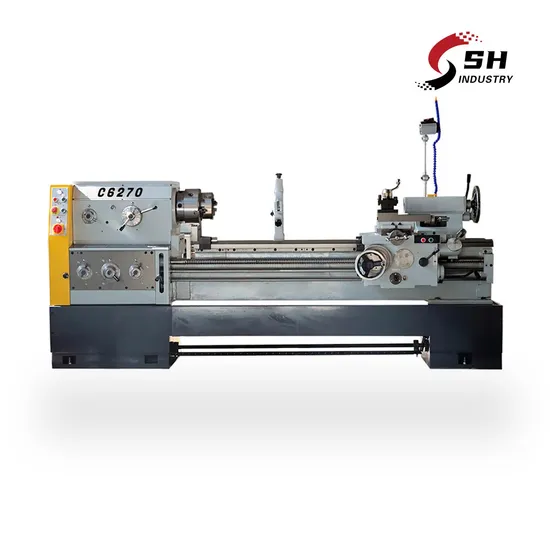

Horizontal Metal Heavy Duty Cheap Precision Horizontal Lathe Machine (C6270)

Product Description

Product Description
Horizontal Metal Heavy Duty Cheap Precision Horizontal Lathe Machine (C6270)
We are the most professional in making gap bed lathe Product Parameters
This series of lathes is suitable for turning internal and external cylindrical surface, conical surface and other rotating surface, turning a variety of metric, imperial, modular and diameter pitch threads, and can be carried out
Drilling and pulling oil tanks and other work.
The bed is wider than the general lathe, with high stiffness, guideway surface by high-frequency quenching, durable wear.
The machine operation is convenient and centralized, and the slide plate is equipped with a fast moving mechanism. Using a single handle visualization operation, good amenity.
The structural stiffness and transmission stiffness of the machine tool are higher than that of the general lathe, and the power utilization rate is high, which is suitable for strong cutting.
Features :
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment

SPECIFICATIONS	Specifications		C6236	C6240	C6250	C6260	C6270
	Capacity	Max. swing over bed	360mm	400mm	500mm	600mm	700mm
		Max.swing over cross slide	200mm	238mm	300mm	400mm	500mm
		Max.swing over gap	590mm	630mm	720mm	820mm	900mm
		Center distance	750,1000,1500,2000mm
		Spindle hole	52mm(82mm)
	Spindle	Spindle nose	ISO-C6(C8)
		Spindle tap	MT6
		Spindle speeds(Number)	40-1400rpm (9 Steps)
	Feed	Metric threads range(Kinds)	0.5-14mm (20 Kinds)
		Inch threads range(Kinds)	2-40/inch (28 Kinds)
		Module threads range(Kinds)	0.25-3.55mπ (11 Kinds)
		Compound rest travel	150mm
		Cross slide travel	180mm
		Cross-section size of tool shank	20×20mm²
	Tailstock	Dia. of tailstock sleeve	65mm
		Taper of tailstock sleeve	MT5
		Travel of tailstock sleeve	140mm
	Main motor power		4KW	5.5KW		7.5KW
	Machine size (L*W*H mm)	Overall dimensions for750mm	2100×1150×1550mm	2100×1150×1550mm	2100×1150×1550mm	2100×1150×1550mm	2100×1150×1550mm
		Overall dimensions for1000mm	2350×1150×1550mm	2350×1150×1550mm	2350×1150×1550mm	2350×1150×1550mm	2350×1150×1550mm
		Overall dimensions for1500mm	2850×1150×1550mm	2850×1150×1550mm	2850×1150×1550mm	2850×1150×1550mm	2850×1150×1550mm
		Overall dimensions for2000mm	3350×1150×1550mm	3350×1150×1550mm	3350×1150×1550mm	3350×1150×1550mm	3350×1150×1550mm
	Weight(kg)	Weight for 750mm	1500kg	1600kg	1700kg	1800kg	1900kg
		Weight for 1000mm	1600kg	1700kg	1800kg	1900kg	2000kg
		Weight for 1500mm	1800kg	1900kg	2000kg	2100kg	2200kg
		Weight for 2000mm	2000kg	2100kg	2200kg	2300kg	2400kg

Detailed Photos
Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
