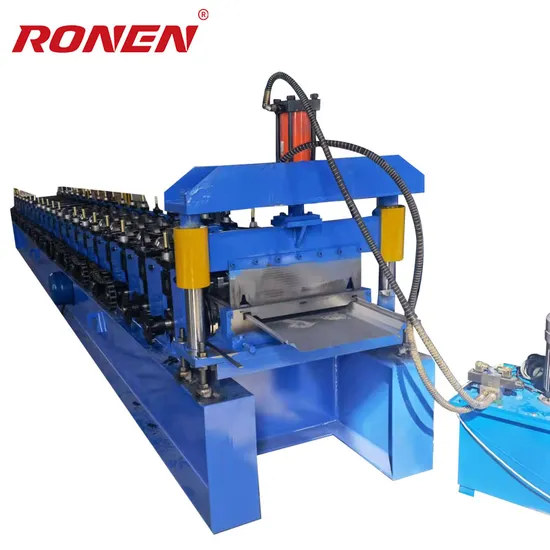

High Quality Manufacture Supply Iron Sheet Metal Profile Making Machine Roll Forming Machine

Product Description

High Quality Manufacture Supply Iron Sheet Metal Profile Making Machine Roll Forming MachineCompany Introduction
"RONENFORM" BG(a member of RGL) is dedicated to manufacturing series of Roofing Sheet Roll Forming Machine,Wires/Springs Forming Machines, Tubes Bending Forming Machines, and various auxiliary equipment and spare parts. The company is headquartered in Beijing, and its manufacturing workshop is located in Baoding and Cangzhou. It provides high quality equipment for domestic and foreign pipe and auto parts customers, with rich experiences of serving the industrial field for more than 20 years, "RONENFORM" becomes a reliable professional wire/tube forming equipment supplier and life time partner. "RONENFORM" does not only provide machines, but also the know-how on specific products thanks to backup by a technician team consists of many top professors-being called "Craftsman", we are confident to guarantee all our customers that our manufacturing level /serving level ranks at the top all over China. We follow up the principle of "ZERO FAULT"on each steps of business with you.
RONENFORM will always be here for you!
Roof Roll Fomming Machine Technique Parameter

1	Suitable to process	Color steel plate, galvanized sheet, aluminum coils and etc.
2	Width of the feeding material	914-1250mm
3	Roller station	11-18 rows or custom as customer's requirements
4	Thickness of feeding material	0.3-0.8mm
5	Productivity	8-12m/min
6	Rollers' material	45# steel
7	Diameter of shaft	70-80mm
8	Voltage	380V 50Hz 3phases
9	Wall thickness of main forming machine	12-18mm steel plate
10	Main forming machine body	300-400 mm H steel
11	Motor power	4-7.5 kw
13	Weight	About 5-15T
14	Custom	According to customer's requirements

Machine Description Roof Roll Forming Machine
PRODUCTION PROCESS FLOW CHART
Machine Details
Machine Feature
Feed Guide Device. 1)Left and right guide devices are set at the feed inlet of the main engine. During operation, both sides of
the raw material plate enter the host after being guided by the left and right, so as to keep the raw material plate in the
correct position with the roll forming system. The guide position can be adjusted by manual screw mechanism, and the left and right can be adjusted independently.
Roll forming system.
1) The roll forming system is composed of frame, transmission parts and roll forming roller group.
2) The frame is made of hot-rolled 400H section steel and steel plate. After welding, it is finished by CNC gantry milling, and the surface is treated with rust prevention. The color of the main finish coat is sea blue.
3) The roller is made of high-quality GCr15 bearing steel. After overall quenching, the surface is chrome plated after secondary processing to improve the surface finish and wear resistance of the roller and prolong the service life of the roller. The quenching hardness is HRC58-60 °
4)The roller axle is made of 45# steel, Quenched and tempered, and the supporting structure of roller frame is of integral casting arch type.
5) The main drive is driven by the chain driven by the reducer.
6) The gap between the upper and lower rollers is adjusted by manual screw to adapt to the rolling of plates with different thickness.
7) The cutting adopts hydraulic forming.
Electric Control System
1) Panasonic PLC and Yaskawa frequency converter control technology are adopted to realize the automatic production of the whole machine.
2) The system provides man-machine interface, which can set batch, workpiece length, quantity and alarm prompt of conventional equipment.
3) Operation mode: touch screen + button.
4) Counting is counted by OMRON rotary encoder,with counting and length counting functions.
Ronen Workshop
Ronen Group Exhibition
Certifications
Packing and Shipping
FAQ:
Q: Are you manufacturer?
A:Yes, We are manufacturer.
Q: How to order?
A:Please send us your inquiry by email, send message through ****** , Wechat, Whatsapp or others as you want.
Q: What are the payment terms?
A: Pattern :we can accept T/T,Western Union ,Money Gram.
Q: What is the whole business flow cooperation with us?
A: 1.Firstly,send your inquiry to us, make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay 30% deposit.
3.All of the goods, packing details will be send to buyer after finished production. We will arrange shipment and the buyer finished to pay the balance.
Not only the Good Machine, but also the Most Attentive Service
If any doubt,feel free to contact us with no doubt!
RONEN always here for you!!
