Full Automatic Good Quality Hydraulic Aquatic Weed Harvester Use for in River

Product Description

Full Automatic Good Quality Hydraulic Aquatic Weed Harvester Use for in River Product Description
* This Weed Cleaning/Cutting Boat is Full Hydraulic Controlled Boat, used to work in Lakes, Rivers and Sea areas. The working principle is easy, the control cabin can complete the process of collecting the water surface weed, garbage, water lettuce, and store after, it can achieve remote control. * Cabin classes use 3C material to make sure the stability and the cabin have large windows to collect sunlight. * This Boat equipped with a compressed storeroom to reduce the size of the collected floater rubbish, hence, increase the storage capacity on the boat and increase collection efficiency. * Propeller driven the boat on the water to increase efficiency. * The head equips with an efficient cutter to make it easy for heavy collecting.
Weed harvester is used for collecting the floating trash,aquatic weed in reservoirs,rivers and lakes.The machine is designed for easy operation, high efficiency, stable performance. All the collecting,conveying,draining,stocking and transporting movement can be completed by one man via controlling the buttons and swifts on the control desk. The work efficiency of the machine is thirty times as much as people cleaning.The weed harvester is controlled by hydraulic system and all the hydraulic parts have high quality sealing effect to make sure that all the working processes completely satisfy the environment protection requests without oil leakage and noise.In the course of technical designing, We have considered special requirements for local tropical climate conditions such as meteorological and waters distributing state ect.
Detailed Photos

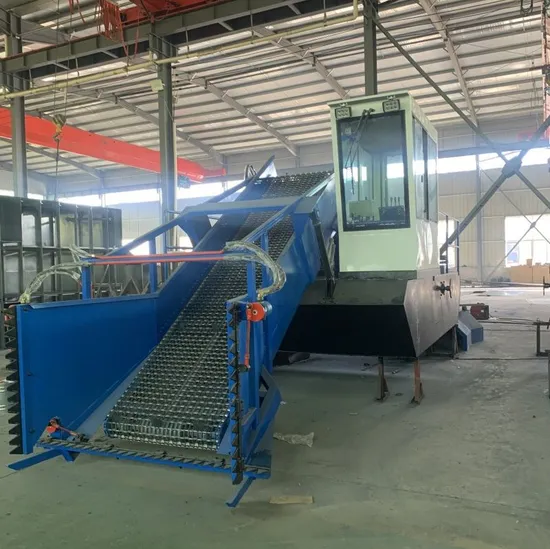

Aquatic harvester is a kind of modern aquatic grass and
floating garbage harvesting equipment integrated with
mowing, gathering, fishing, filtering, transporting and
discharging. All operation procedures adopt hydraulic
control with simple, convenient and flexible features. It is
an indispensable cleaning equipment for urban water
surface scenic spots.

1) Simple structure in linear type ,easy in installation and
maintation.
2) Adopting advanced world famous brand components in
pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and
closing.
4) Running in a high automatization and intellectualization,no
pollution
5) Apply a linker to connect with the air conveyor ,which can
directly inline with filling machine.
Product Parameters
SH-9-1500 medium size full automatic harvester parameter

NO.	item	parameter
1	dimension	9.5mx4.3mx2.55m
	capacity	1500m2/h
	harvest depth	0.8m
	harvest width	1.4m
	continue working time	24hours
	working speed	3-5KM/h
	sail speed	5-7KM/h
	transmission way	full hydraulic
2	hull .	4.5mx2.9mx0.8m
	material	Bottom plate 4mm,side plate:4mm,deck plate:3mm.
3	main engine
	manufacturer	Weifang diesel engine
	type	4100
	power	45KW
	drive cooling way	electrical
4	walking way	wheel
	wheel size	1.1mx0.55m
	quantity	2 pieces
	drive way	hydraulic motor 2 sets
5	front collecting arm
	dimension	5mx1mx1.3m
	transmission way	hydraulic motor 1 set
	lifting way	hydraulic cylinders
	chain material	stainless
6	back storage rod
	dimension	8.5mx1mx0.7m
	chain material	stainless
	storage capacity	7.5m3
	transmission way	2 hydraulic motor 2 sets
	lifting way	2 hydraulic cylinders 2 pieces
7	operation room	1 1 set
	dimension	1.5mx0.75mx1.6m

Production processing SHENG HE Aquatic harvester features
1.Shenghe aquatic weed harvester is usually used in river,river,reservoir,canal and coasts for cutting, collecting,storing and transporting,water grass and floating garbage. All the equipment of the ship can work automatically and can save much labor force for its high efficiency.
2.Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts.
3. It is to be easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
4.The machine is driven by paddle wheel instead of the screw propeller,which can make sure the wheel is not entangled by the underwater weed.The system is perfectly optimized so that the machine can work efficiently.
