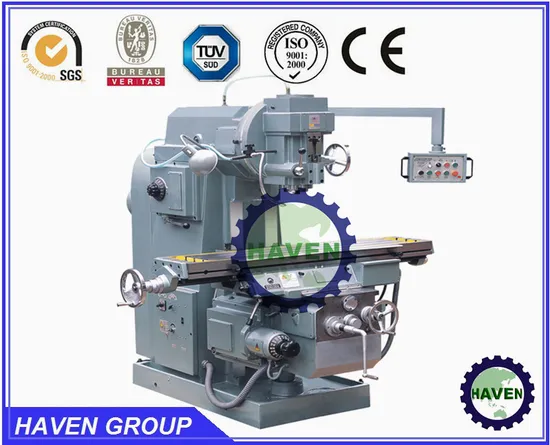

Vertical Knee-Type Milling Machine (X5035)
| US$1,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X5035
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle taper
7: 24/ISO50
Spindle axial travel
80mm
Spindle speed range
18steps: 30-1500rpm
Milling head motor
7.5KW
Transport Package
Veneer Box or Wooden Case
Specification
CE Standard
Trademark
HAVEN
Origin
China
HS Code
8459590000
Production Capacity
100unit/Month
Product Description
Vertical Knee-Type Milling Machine (X5035)
(Picture for reference)
Milling machine: The Vertical Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice, milling chuck, Digital readout (2 dimensional or 3 dimensional).
Standard Accessories
Milling-cutter Mandrel
Wrench, Milling cutter Mandrel, wrench
Milling machine with the middle set of taper
Milling drawbars, wrenches, Oil gun
Nut, Foundation screw
Optional
Dividing head
Milling chuck
Machine vice
Rotary table
Digital readout
| Item | Parameter |
| worktable area(width*length): | 350*1600mm or 350*2000mm |
| Max. longitudinal travel(manual)/(power) | 1000/900mm or 1400/1300mm |
| Max. transversal travel(manual)/(power) | 300/280mm |
| Max. vertical travel(manual)/(power) | 430/400mm |
| T-slots(number of slot-width*pitch): | 5-18*65mm |
| Distance between spindle to table surface | 50-450mm |
| Spindle taper | 7: 24/ISO50 |
| tool bar diameter | 32-50mm |
| vertical milling head max. swivel angle | ± 45 |
| Spindle axial travel | 80mm |
| Spindle speed range | 18steps: 30-1500rpm |
| Milling head motor | 7.5KW |
| Feed motor | 1.9/1.3kw |
| coolant motor | 0.125kw |
| Package size(L× W× H) | 2190× 2010× 2250mm |
| Machine Weight | 3200/3500kg |
WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting
Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige
