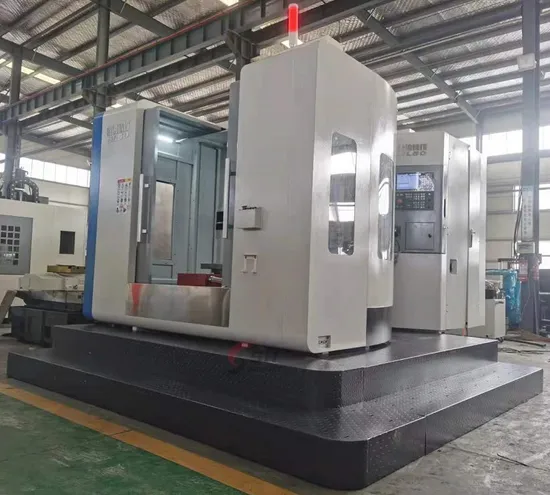

Hmc500 Automatic 4 Axis CNC Horizontal Machining Center
| US$44,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HMC500
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Product Name
Hmc500 Automatic 4 Axis CNC Horizontal Machining C
X Axis
800
Y Axis
650
Z Axis
800
X Axis Rapid Speed
24
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8457102000
Production Capacity
200
Packaging & Delivery
Package Size
334.00cm * 448.00cm * 270.00cm
Package Gross Weight
9000.000kg
Product Description
HMC500 Automatic 4 Axis CNC Horizontal Machining CenterProduct Description
Main technical specifications of HMC500:
| Travel | |
| X axis | 800mm |
| Y axis(Headstock travel up/down) | 650mm |
| Z axis(column travel left/right)) | 800mm |
| distance from table center to spindle nose | 150-950mm |
| distance from spindle axis to table surface | 100-750mm |
| Feed | |
| X axis rapid speed | 24m/min |
| Y axis rapid speed | 18m/min |
| Z axis rapid speed | 18m/min |
| Cutting Feed | 1-10m/min |
| 3 axis servo motor torque | 15/28/28 N.m |
| rotary table servo motor torque | 15N.m |
| Table | |
| Worktable size | 500×500mm |
| Max.load | 600Kg |
| Table indexing | 1°x360° |
| T slot | 5×18×100mm |
| Spindle | |
| Connect | Belt |
| speed | 8000 rpm |
| Spindle taper | BT40 |
| Main motor power | 11KW |
| Accuracy | |
| Positioning accuracy | ±0.005/300mm |
| repeat positioning accuracy | ±0.003mm |
| Other | |
| weight | Approx 9000Kg |
| Machine size | Approx 3340×4480×2700mm |
Main parts List
| NO. | Configuration | specifications | manufacturer |
| 1 | Special bearing for three-axis screw rod | XY: 3062 Z:4072 | CSPG/NSK |
| 2 | Three axis ball screw | 40/40/50 | SHAC |
| 3 | Three axis linear guide rail | Roller type 45 | HIWIN |
| 4 | Belt type spindle | BT40-150-8000rpm | Volis |
| 5 | Knife punching cylinder | 4.5T | Volis |
| 6 | Three axis telescopic cover | n/a | LIUDING |
| 7 | Positive displacement automatic lubrication system | n/a | HERG |
| 8 | Three axis locking nut | XY:M30*1.5P Z:M40*1.5P | |
| 9 | Three axis coupling | n/a | GE |
| 10 | Anchor bolt seat+anchor bolt+nut | n/a | n/a |
| The above is the optical and mechanical configuration, and the following is the overall configuration | |||
| 1 | operating system | 22MA | SYNTEC |
| 2 | Outer cover sheet metal | Fully enclosed (two screw and one chain chip conveyor) | Taihai |
| 3 | Pneumatic system | n/a | AirTAC |
| 4 | Cooling pump | 480W | DL |
| 5 | heat exchanger | 5AF | Winhee |
| 6 | Main electrical components | n/a | Delixi/Schneider |
| 7 | Work lights | M9-600/16W | Onnled |
| 8 | Warning light | I2/foldable/buzzing/DC24V | Onnled |
| 9 | Tool magazine | BT40-24T Arm type(special for horizontal machining center) | OKADA |
| 10 | technical file package | Mechanical/Electrical/System Instructions, Accuracy Inspection Form | n/a |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
