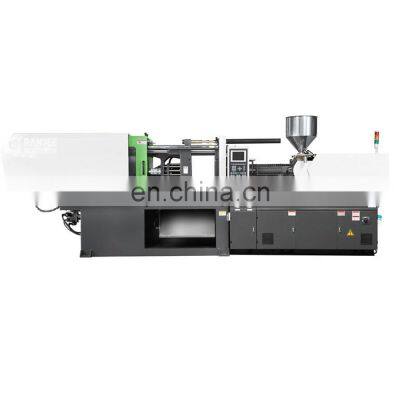

Small PET Bottle Injection Molding Machine / Preform Making Machine

Product Description

Product Description
Small PET Bottle Injection Molding Machine / Preform Making Machine
Product Description
Machine Features:
Injection molding machine usually consists of the injection system, clamping system,
hydraulic drive system, electrical control system, lubrication system, heating and cooling
systems, security monitoring systems and other components.
Working principle of injection molding machine is similar with an injection syringe, it is by means of a screw (or plunger) of thrust, make good plasticized molten state (ie,
viscous state) good plastic injected into the closed mold cavity to obtain shaped
articles after curing.
Injection molding is a cyclic process, with each cycle including: quantifying feeder -
molten plastics - pressure injection - filling mold cooling - open mold and pick up
products. Take out the plastic parts and then go into next cycle operation.
Main machine :
PET Preform Injection Mold
Cap mould
Screw
Aulixiary Equipment
Main technical parameter:

Item	Specification
Screw diameter	mm	50
Theoretical Shot weight	CM3	442
Shot weight	gram	402
Max Injection pressure	kg/cm2	1960
Theoretical Injection rate (PS)	CM3/sec	196
Plasticizing capacity	g/s	26
Screw stroke	mm	225
Screw torque	N.m	1310
Screw speed	rpm	250
Heating power	kw	13.6
Clamping force	ton	160
Opening stroke	mm	460
Mould height	mm	180~500
Space between tie bars	mm	480×480
Ejector force/stroke	ton/mm	45.2/115
Oil pump motor	kw	15
Machine size	m	5.2X1.3X2
Packing size	m	5.62×1.48×2.23
Machine weight	ton	5
Cycle time	sec	8-10
