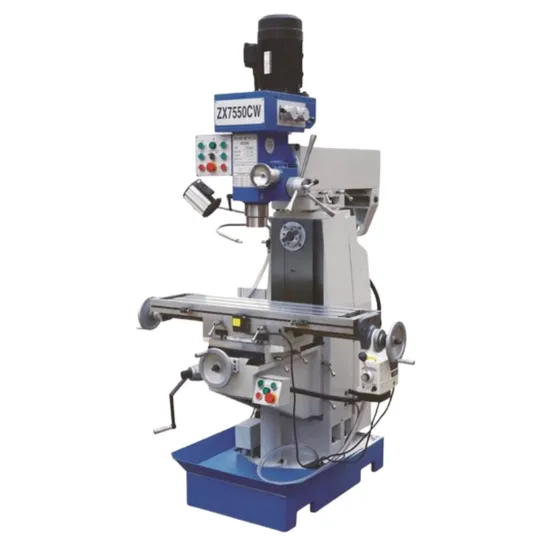

High Speed Spindle Vertical Milling Machining Horizontal Drilling/Turning Machinery

Product Description

Product Picture

Specification Parameter

Specification	Units	XZ7550CW
Table size	mm	1000*240
Table travle	mm	600*230
Distance from spindle nose to table surface	mm	60-390
Max.Drilling dia.	mm	30
Max.end milling width	mm	100
Max vertical milling dia	mm	25
Max tapping dia.	mm	M16
Spindle speed range	rpm	115-1750(V) 58-1355(H)
Spindle tavel	mm	120
Overall dimension	mm	1290*1220*2100
Spindle motor power	kw	0.85/1.5(V) 1.5(V)
Machine weight	kg	970

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
