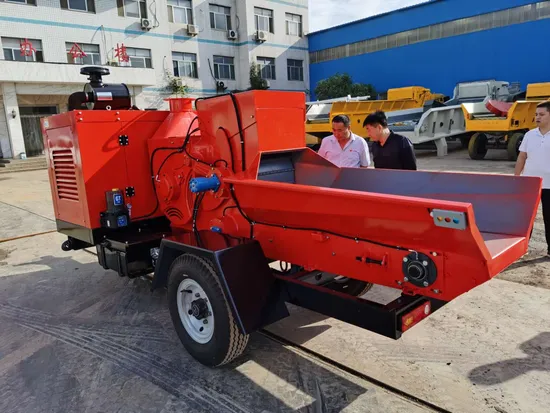

Movable Wood Chipper with Feed in Chain Conveyor and 120HP/160HP Diesel Engine
| US$28,600.00-52,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HX1600
Automatic Grade
Full-Automatic
Warranty
2 Years
Engine
Diesel Engine 160HP
Weight
3.8 Tons
Fuel Tank
52L
Hydraulic Tanl
72L
Transport Package
Plywood Box
Specification
5.2*1.8*3.35m
Trademark
HX
Origin
China
HS Code
847930000
Production Capacity
500 Sets Per Year
Packaging & Delivery
Package Size
560.00cm * 220.00cm * 330.00cm
Package Gross Weight
3600.000kg
Product Description
Product DescriptionMobile branch shredder brush crusher wood splitter wood chippers and shredders for sale
Product Description:
The branch shredder is suitable for gardens, orchards, road tree maintenance, parks, and residential roads to smash branches. The shredded branches can be used for in-situ burying and covering, garden bed bases, edible fungi, papermaking, biological power generation, papermaking and other waste reuse. The crushed wood chips can be sprayed directly into the vehicle, reducing the volume by 80%, saving transportation costs, energy saving and environmental protection.
Parameters
| Machine size | Length 5.2m x Width1.8m x Height 3.35m |
| Weight | 3.2t |
| Feed in size | 960 mm x 512 mm |
| Feed in Roller | 2(+)two feed in rollers(Up feed in roller+bottom feed in chain conveyor) |
| Rotor size | 655 x 500mm |
| Feed in roller size | 600 x 480mm |
| Blade size | 270 mmx 110mm x 18mm |
| Blade type | Double cutting edges |
| Blade quantity | 4 + 1 |
| Feeding platform length | 1790mm |
| Diesel engine | 160HP turbo charging engine 160HP ,China |
| Silencer | Silencer uses special silencer cotton |
| Max crushing log diameter | 40cm |
| Feed in speed | 0-36m/min |
| Feed in system torque | 548N.m |
| Feed in shift | Feed in-Stop-Reverse |
| Main drive type | America WPT brand industrial clutch+belt drive |
| Feed in type | Hydraulic motor automatic feed in(with control valve) |
| Discharge height | 3.2m |
| Rotor rotation speed | 2050 rpm |
| Working mode | Fixed,towable |
| Brake type | Pneumatic brake |
| Start mode | Electric start |
| Voltage | 24V |
| Tire | 750-16 |
| Fuel tank volume | 50L |
| hydraulic oil tank volume | 72L |
| Lubrication system | 24 Voltage,Automatic grease lubrication system,lubricate required parts regularly |
| Screen | Engine rotation speed,water temp,engine oil pressure,electric quantity,fuel level,hydraulic oil level,working time |
| Safety equipments | Blade rotor safe lock,emergency stop button,emergency stop gear lever,back indicator light |
Machine pictures,it has a steel plate feed in conveyor,so you can use loading machine to feed in wood,no need manpower
Sketch
Manufacturing
Shipment(need one 20GP)
Clients visit and Exhibition
Cerficate
