Basic Info.
Certification
ISO9001, RoHS, CE
Transmission Distance
<50m
Working Distance
Radius 20m (Any Direction)
Input Voltage
110V/220-240V
Signal Transmission
RF Remote Control
Transport Package
Double Blister Packing Within Color Card
Production Capacity
500, 000PCS/Month
Packaging & Delivery
Package Size
17.00cm * 8.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

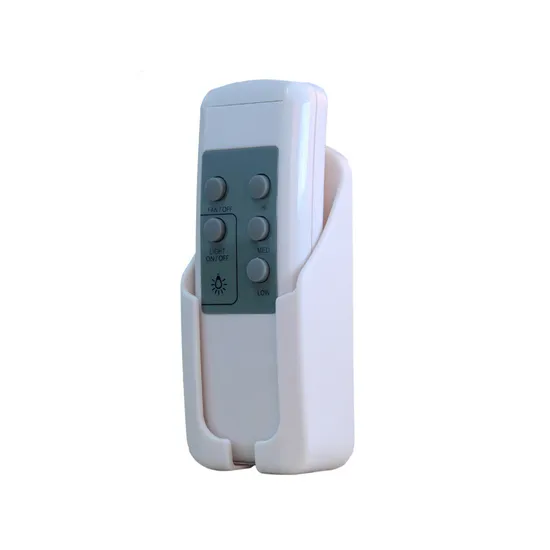

Smart Remote Controller for Ceiling Fan-Light control
Product Description Features(AS-CF239N):
1. Be suitable to be installed into any decorative ceiling fans;
2. With adjustable, capacitor speed adjustment;
3. Radio controls(433.92MHz);
4. Apply to ceiling fan and decorative ceiling fan;
5. Suitable for home, factory, hotel, office, etc;
Operating Instruction:
1. Turn on ceiling fan by pressing LOW, MID or HI button;
2. Turn off ceiling fan by pressing the FAN/OFF button;
3. Turn on/off the lamp by pressing Light ON/OFF or Light DIM button;
4. The light dim by pressing the Light DIM button more than 1 second
Product Parameters 1. Input voltage: 110V/220-240V
2. Lamp power: 600W Max
3. Moter Power: 150W Max
4. Operation range: Radius 20M (any direction)
| Electrical Parameters: |
| Voltage | 220~240V(50Hz/60Hz) | Operating temperature | 0C~55C |
| Light load | 600W(maximum) | Relative humidity | Non-condensing 20-90% |
| Motor load | 150W(maximum) | Working distance | RF≥ 10m |
| Receiver dimension | 110*60*21mm | Receiver weight | 91g |
| Transmitter dimension | 138*49*23mm | Transmitter weight | 55g |
