Automatic Screw Feed Driver Auto Feeding Screwdriver Machine for Assembly Production Line

Product Description

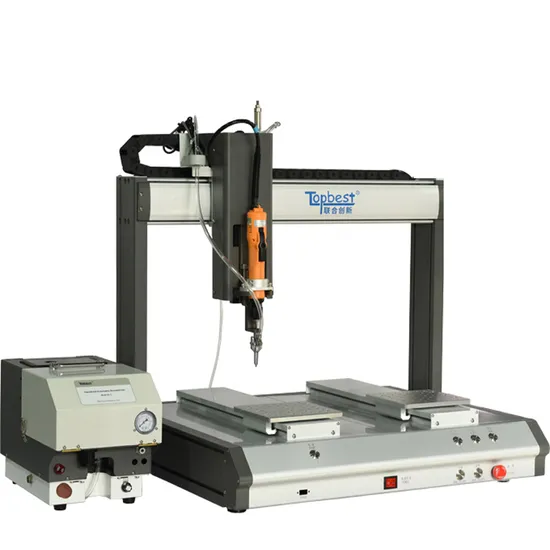

TBS-SC-6331 Desktop 4-Axis Blowing Feeding Single Head Double Rail Robotic Screw Fastening Machine
Parameters

Model		TBS-SC-6331
Feeder mode		Blowing Type
Dimension (L*W*H) (mm)		800*630*780mm
Driving mode		Closed-loop Motor+Synchronous belt
Control mode		Microcontroller + Teach Pendant
Operation Range (mm)	X Axis	X = 580mm
	Y1/Y2 Axis	Y1 = 280mm, Y2 = 280mm
	Z Axis	Z = 100mm
Maximum Speed	X/Y1/Y2 Axis	600mm/S
	Z Axis	400mm/S
Repeated precision	X/Y1/Y2 Axis	±0.02mm
	Z Axis	±0.02mm
Teaching Method		Remote Teaching / Manual Data Input
Memory		1000 files
Screwdriver brand		KILEWS / Japan HIOS / SD
Max. Load		15KG
Alarm system		Stripped alarm
Weight(kg)		76 KG
Voltage		AC 110V/220V,50Hz/60Hz
Power Source		Electricity + Pneumatic
Air pressure requirement		0.4 to 0.8MPa as dry air
Working Temperature		5-40C°
Working Humidity		20-90% RH

Features
1. Automatic screw feeding.
2. Available for M1-M4 screw.
3. Dual stations to maximize efficiency.
4. Smart screwdriver to record torque for each screw (Optional).
Condition
The screws used must meet the requirements:
(1) The total length (H) of the screw must be more than 1.2 times the diameter (D) of the screw head.
(2) Be Suitable for M1-M4 screw.
(3) The total screw length(H)<=30mm and screw cap's diameter(D)>=2mm<=8mm.
