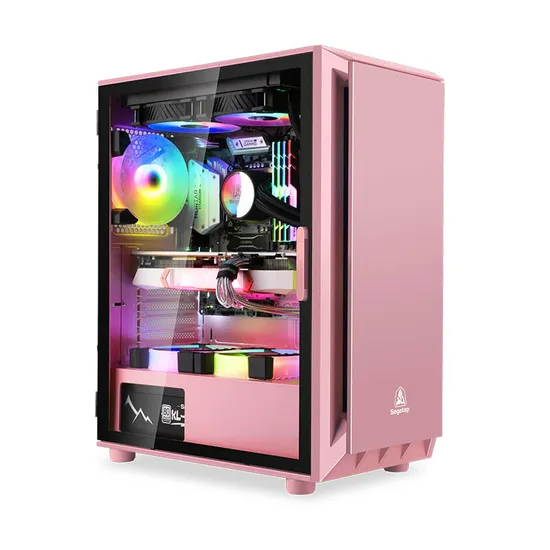

Segotep Gank5 ATX Desktop Computer Case DIY Rightside Door Opening Gaming Tempered Glass Gabinete PC Case Gamer Large Chassis
Basic Info.
Model NO.
Segotep Gank5
Case Structure
ATX
Type
Tower
Material
Steel plate
Color
Pink
Front Interface
USB3.0*1+USB2.0*2+HD Aduio
Cable Management
Back Cable Management
Maximum Lenght of Graphics Card
200-300mm
Sheet Thickness
0.6mm
Fans Position
Front 12cm*3or 14cm*3
Pic Insert Slot
7
Transport Package
Canton
Specification
413mm*219mm*485mm
Trademark
SEGOTEP
Origin
China
Production Capacity
1000000
Product Description
Segotep Gank5 ATX desktop computer case DIY rightside door opening gaming Tempered glass gabinete pc case gamer large ChassisCase parameter:
| Packing size: | 550mm*287mm*482mm |
| Total case size: | 413mm*219mm*485mm |
| Hardware size : | 360*210*465mm |
| Support motherboard specification: | ATX/M-ATX/ITX |
| Graphic card limited length: | 300mm(Front 240 cold pipe) 330mm(Front Fan) |
| CPU cooler limited height: | 162mm |
| power supply limited length: | 190mm |
| Disk position: | bottom plate 3.5inch *2 or 2.5inch*1 +3.5inch*1 motherboard2.5inch*3 |
| fans position: | Front 12cm*3or 14cm*3(240 water cooler) Top12cm*2 /14cm*2(240 water cooler) Rear 12cm*1 Power supply pack position 12cm*2 |
| I/O interface : | USB2.0*2,USB3.0*1,HD AUDIO |
| PIC insert slot: | 7 |
Installation instruction
| 1 | Remove the front metal panel without tool |
| 2 | Remove the tempered glass window without tool before installing |
| 3 | Do not need to remove plastic panel when you install 12cm fan on the front |
| 4 | Move the hard driver bracket easily |
| 5 | Screw and parts Package |
Advantage
| 1 | 1.0mm SPCC Panel |
| 2 | 18mm Side Space |
| 3 | U-shape Remove panel quickly /Transparent side panel(The MAX) |
| 4 | EPE/Scrap proof package |
| 5 | Zero-hole /Explosion-proof glass |
190mm
MAX PSU Length
Built-in PSU Cover
20mm(Hide-cable management Space )
