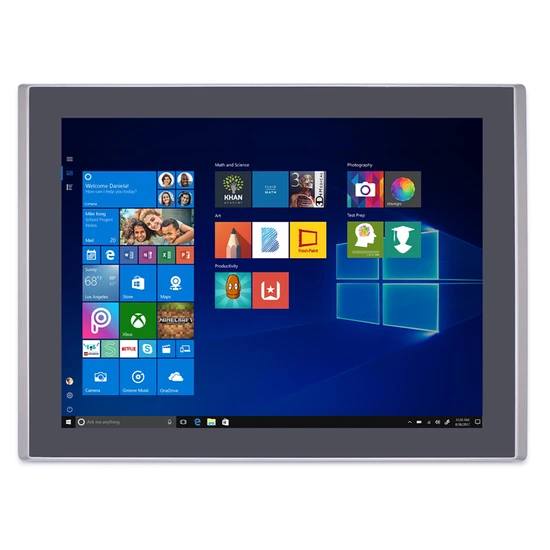

8" 10.1" 12.1" Inch Embedded PC I7 I5 J1900 Win 10 Touchscreen Barebone Industrial Panel PC

Product Description

Product Description Company Introduction Hystou Technology Co Limited is a reliable manufacturer and exporter of fanless Mini PC, industrial PC, all in one PC and industrial panel PC. Product Usage Details Images

Processor	In-tel Core i7 4500u/ i5 4200U/J1900
Memory	Onboard DDR3L 4G memory
Storage	support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series)
Lan	2*GbE RJ45 In-tel@i211-AT
	3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface
	2*DB9-RS232/422/485 COM
	2*3-wire RS232/485 COM phoenix terminal
	2*3-wire RS232 COM phoenix terminal
Interface Port	1* Audio line-out
	2*8Ω 1W Speak out(optional)
	1*phoenix terminal DC 9-36V Input
	1*AT/ATX Switch
	1*HD output
	1*14bit GPIO(Optional)
WIFI	1x full height Mini PCI-E,onboard SIM slot, support 3G/4G
Resolution	16.2M Color, 1280*800 ( 1280*600 optional)
Panel	TFT LCD (support 10.1" 12.1" 15.1" 17")
Backlight Hour	(LED )30,000
Brightness	400cd/m²
Visual	-85~85°(H) -85~85°(V)
Type	5 wire resistance type
Dimen	289.53*192.44*48.3MM(for 10.1")
Weight	NW: 2.7KG, GW: 4.5kg(10.1" weight, also support 12.1" 15")

Packing&Shipping FAQ 1. Can you put my brand name (logo) on these products?
Yes, we can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What payment method do you accept?
T/T,Western Union,PayPal.
3. What is the Minimum Order Quantity(MOQ)?
We can sell one piece sample for your test.
4. What is the lead time of your products?
1-3 days for one sample, 15 working days for a large quantity.
5. How many years for the product warranty?
3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions.
6. What are the shipping methods for it?
We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea, etc.
7. What kinds of customization can you do?
We can do the products as per your configuration of CPU, RAM, hard disks, Wifi, I/O ports, color, size, customized OS, logo, etc.
8. Can you equip the devices with related products or services?
Yes, we can offer you mouse and keyboard combo, HD cable, genuine win 10 license, external CD-ROW, USB Hub, BT dongle, etc.
9. What is HS code of Hystou mini pc?
8471499900
