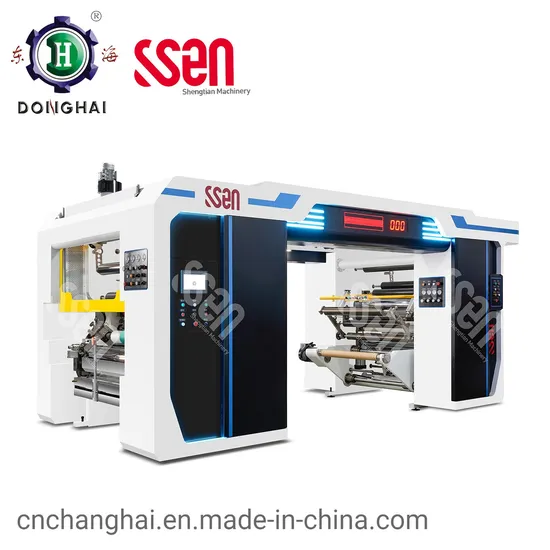

Ssen Sen-a Model High Speed Solventless Laminating Lamination Machine Solventfree Lamination Machine Price China Xintian Machinery Factory Direct Supply 500mpm
| US$1,000.00-155,555.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SEN-1050A, 1350A, 1650A
Classification
Solventless Lamination Machine
Application
Packaging Paper, Film Material
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
All Kinds of Plastic Films, Paper, Alu Foil etc
Plastic Film Mulching Modes
Two-Layers Lamination Composite
Performance
Food Packaging
Max.Laminating Speed
500m/Min
Max.Material Width
1050mm.1350mm, 1650mm
Glue Mixer
Included
Water Heaters
Included
Servo Motor
7PCS
Transport Package
Iron Bracket+Film Wrapping
Specification
5800*3050*3050mm
Trademark
SSEN
Origin
China Mainland
HS Code
84778000
Production Capacity
200sets/Year
Product Description
Machine basic parameters| Model Parameter | SEN1050A | SEN1350A | SEN1650A |
| Max.material width | 1050mm | 1350mm | 1650mm |
| Max.unwind diameter | φ800mm | φ800mm | φ800mm |
| Max.rewind diameter | φ800mm | φ800mm | φ800mm |
| Total power | 53kw | 58kw | 62kw |
| Water heater included | 3sets | 3sets | 3sets |
| 2-component glue mixer | 1set | 1set | 1set |
| G.Weight | 11000kgs | 13000kgs | 15000kgs |
| Dimension(L*W*H) | 5800*3050*3050mm | 5800*3350*3050mm | 5800*3650*3050mm |
Substrate Types
| Laminating substrates | Thickness of substrates | Coating substrates | Thickness of substrates | |
| BOPP | 12-80μm | BOPP | 12-80μm | |
| PETP | 8-30μm | PETP | 10-30μm | |
| LDPE,LLDPE | 20-200μm | LDPE,LLDPE | 30-200μm | |
| OPA | 12-18μm | OPA | 12-18μm | |
| NYLON CAST | 20-80μm | NYLON CAST | 30-80μm | |
| ALU(Foil) | 6.3-40μm | PP CAST | 60-150μm | |
| PP CAST | 20-150μm | PAPER | 40-150gsm | |
| COEX FILM | 20-200μm | |||
| PAPER | 40-150gsm |
Packaging & Shipping
Company Profile
After Sales Service
As the ultimate manufacturing factory, we not only provide you competitive factory price, visible capital goods,but also more invisible values including:
1) In-time delivery
2) One year quality guarantee and overseas technical service
3) Competitive factory price without any third party involved
4) Tailored solutions for specific demand and requirements provided
5) Quick delivery for spare parts
6) Fast response to customer's confusions
7) Keep customers updated with the production steps
8) Strict quality control during production and do inspection before delivery
9) Instant remote technical consultation and operation guidance
10) Shipping following up until goods arrives at destination safely
