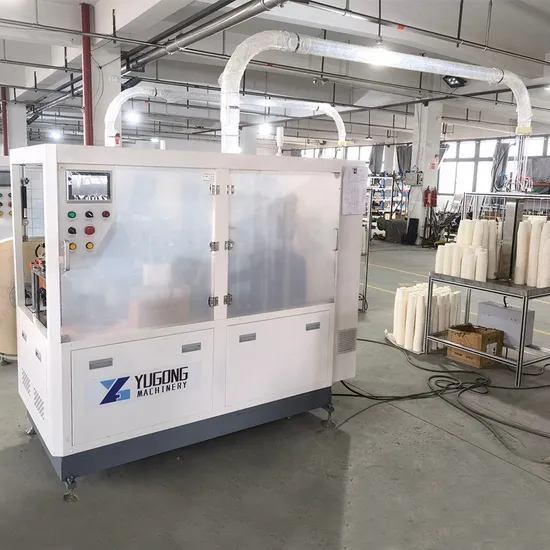

High Speed Fully Automatic Disposable Single Double Wall Coffee Ice Cream Paper Bowl Paper Cup Forming Making Machine for Hot Cold Drink Cup

Product Description

Product Description High Speed Fully Automatic Disposable Single Double Wall Coffee Ice Cream Paper Bowl Paper Cup Forming Making Machine for Hot Cold Drink Cup
Paper Cup Making Machine:New paper cup forming machine is a fully automatic paper cup forming machine, which can automatically feed paper through multiple rows, paper anti-backing device (to ensure accurate positioning), ultrasonic welding, transfer of mechanical paper tube, oil injection, bottoming, folding bottom, Pre-heating, knurling, unloading and other continuous processes can stably produce paper cups of various specifications.
Main feature:
1. The whole steel plate fuselage,interlayer paper feeding design and the style of oil poured lubrication system is Ensured the
equipment long-term normal and Stable Work;
2. Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations
high-speed worked accurate without mistake;
3. Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately;
4. Exquisite original creation 490mm mould turn plate design make the equipment work load more light and the speed to be more
fast;
5. Scientific and reasonable mechanical is fit Itinerary design can using in premise of exchange mould can make the products
producing range 6oz-22oz ;paper thickness 170g-350g. Foreign technical and Made in China:
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported. User-friendly design:
The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.

Cup size	6~16oz(outside diameter ofa cup 60-90mm,outside diameter of bottom 50~70mm,height of cup 50~135mm,depth of bottom 5~10mm)
Rated speed	90-110pcs/min
Main motor power	2.2KW
Electro thermal power	8.6/13.2KW
Air source	0.6m/min;0.6MPa customer-owned
Applical base paper	190~350g/(single or double PE coating paper)
Weight	3.8T
Main size	2700*1500*1800mm
Paper cup collector size	1150*850*2000mm
Actual power consumption	7.5KW
Remark	The paper thickness error margin is ±0.05mm for the same set of mould

Detailed Photos
Product Parameters
Packaging & Shipping
Company Profile
Customer Visit

Our Services
1.We have more than19 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements. FAQ
1.Q:Are you trading company or manufacturer?
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free.
You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
