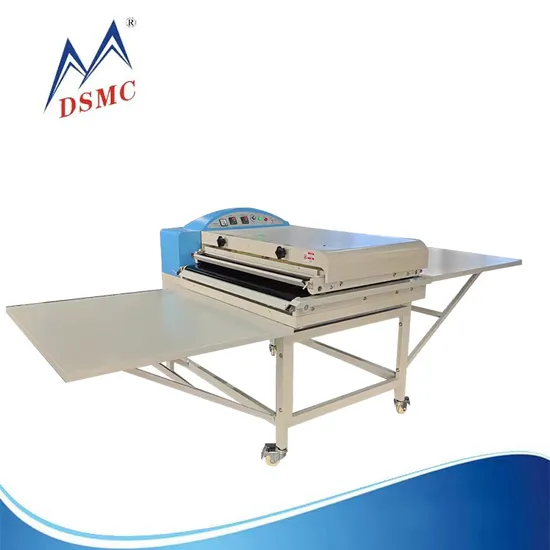

Roller Fabric Heat Press Machine/Multifunctional Roller Heat Press Machine

Product Description

Fusing Fabric interlining machine roll heat press rhinestone machine Guangzhou Dashan Ming Machinery Co., Ltd (Dashan Machinery) is established for many years, set R & D, production, sales and service in one of the industrial enterprises, the company mainly develops hot drilling machine, hot painting machine, laser machine, brush drilling machine and other equipment.
Product Description
1. The machine is equipped with imported seamless conveyor belt with special structure, the belt will not produce offset distance and ensure the service life.
2. The temperature of the heating area is uniform, with upper and lower thermal temperature regulators, the working temperature can be adjusted in the range of 0~220 °C, and single-sided and double-sided lining can be performed.
3. With power failure hand crank function, the fluorine belt will not burn the material in the event of a sudden power failure
4. Fast running speed.
Technical parameters

Model	DS-600F	DS-900F
Voltage	220V/380V	220V/380V
Power	7KW	10KW
Temperature	0~220ºC	0~220ºC
Speed	0~10m/min	0~10m/min
Fusing width	600mm	900mm
Roller pressure	0~2.0kg/cm2	0~3.5kg/cm2

Details of Machine

Company information
Guangzhou Dashanming Machinery Co., Ltd, an industrial enterprise integrating R&D, production, sales and service, specializing in the manufacturing ultrasonic hot drilling machine, automatic hot fix machine, ultrasonic welding machine( fixed position machine),heat press machine(pneumatic, hydraulic, manual), steam press machine, laser cutting machine(carving machine), robot automatic production line, other equipment and related accessories. Further more, we can develop all kinds of non-standard production equipment according to the drawing and requirements from clients.
