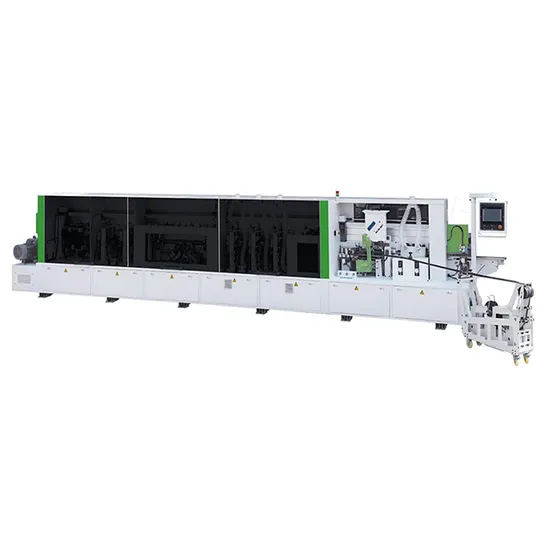

Wood Automatic Edge Banding Machine with Separating Agent

Product Description

Wood Automatic Edge Banding Machine with Separating Agent Product Description

Product Parameters

Edgeband Thickness	0.4-3mm
Edgeband Height	10-65mm
Edgeband Herght(Pre-milling runs)	12-36mm
Panel Thickness	8-60mm
Panel Thickness(Pre-milling runs)	8-32mm
Feeding Speed	18-32m/min
Min. Panel Width	≥60mm
Min.Panel Length	50mm
Min.Panel Length(Pre-milling runs)	100mm
Motor Power	24.13kw
Working Pressure	0.7Mpa
Overall Dimension(L*W*H)	9827*1000*1600mm
Net Weight	5000kg

Application:
Edge banding machine in woodworking is used in banding edge of desks,carbinet,wardrobe and stright line furniture.The edge bander can be PVC,melamine,wood based works and so on,with powerful fuctions as edge feeding,sticking,material cutting,front-back trimming,roughing,fine finishing,scraping and buffing,with features as follows:
1) Adopt high-power and high frequency motor to improve effect
2)The pressure beam is made of high strength aluminum alloy heavy structure, which makes the material more stable and efficient during operation.
3)The imported trachea has high flexibility, winter frost resistance, no burst, frost resistance, fatigue resistant cable and more extended service life.
4) The frame plate, cold plate welding, after welding after annealing processing, the machine in the production process without affecting the internal stress and deformation.

Detailed Photos

Spray Unit	Pre-milling
Isolate the glue on the surface of the panel in up and bottom side	Remove the possible waving texture on edge to achieve better edge banding affection

Quick Melt	Gluing and Pressing
Includes a pre-melt mechanism and a quick change mechanism.Glue pot changing time reduced to as less 15 minutes	Spread the glue on both banding panel and band, ensure a more solid adhesion force

End cutting	Trimming
High precision trimming with two hardened linear guide	Fine trimming of the top and bottom edges. Complete with 2 high-frequency motors

Corner Rounding	Scraping
Four heads corner rounding: high precision guaranteed perfect look and touch	Scraping eliminates the imperfections resulting from previous machining operations on the top and bottom of the edge

Wire Fracture	Flat Scraping
Remove the wood silk,prevent winding to the polishing wheel to cause the motor to be jammed and burned out	Removes excess glue from the top and bottom of the panel

Clean Unit	Pneumatic Polishing
Clear the residual glue ,keep panel clean	The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly

Final Product

Packaging & Shipping


Company Profile
1. We have our own woodworking machinery factory.
2. As a professional manufacturer, we have 14 years factory experience for woodworking machinery.
3.Our products are widely sold in made-in-china.
4. More and more customers in the world are using our machine, we received many good feedbacks or reviews from lots of countries.
5. We are looking for Good customers like you! and Distributor or Agents Wanted!!!
Learn more about us on SNS

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
