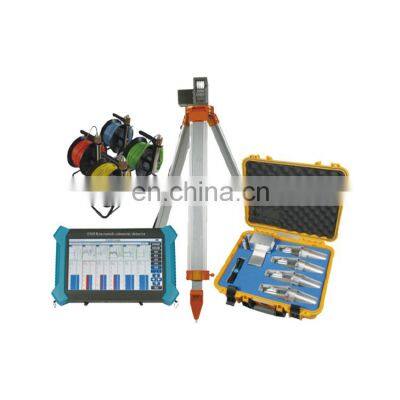

Ultrasonic test for concrete sonic test for piles

Product Description

Product Description
Usage Overview
U950/U960Non-metallic ultrasonic detector(multi-tube measuring pile)Ultrasonic transmission method for pile integrity testing,
Structural concrete compressive strength, crack depth, crack width and defect detection; Diaphragm wall integrity testing, which
integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection,
crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of
non-metallic materials such as rock mass and concrete.
Product Description
· Integral design, compact size
· Easy to carry and make work efficient
·
Specification

Product Model	U950			U960
Master unit	Built-in A8 industrial control motherboard			Built-in A8 industrial control motherboard
Display	10.1 inch, high brightness, TFT color LCD capacitive screen			10.1 inch, high brightness, TFT color LCD capacitive screen
Operational mode	Touch screen			Touch screen
Storge mode	Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk			Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk
Acquisition mode	Synchronized continuous rapid mining			Synchronized continuous rapid mining
Number of channels	3 Channels Spontaneous Receiving			4 Channels Spontaneous Receivingannels
One-time section number	3			6
Trigger mode	Signal triggering			Signal triggering
Test method	Plainning Re-testing Encryption. Oblique Survey			Plainning Re-testing Encryption. Oblique Survey
Data transmission mode	Wireless Cloud Transport(Options)			Wireless Cloud Transport(Options)
Acoustic Time Accuracy(μs)	0.05			0.05
Sampling period(mμs)	0.05-409.6 Multistage Options			0.05-409.6 Multistage Options
Acoustic time range(mμs)	±1677700			±1677700
Dynamic range(dB)	146			146
Width measurement function	Measuring range: 0~10mm; Measuring accuracy: 0.01mm			Measuring range: 0~10mm; Measuring accuracy: 0.01mm
Bandwidth(kHZ)	1~500			1~500
Receiving Sensitivity(UV)	Less than 10			Less than 10
Gain Accuracy(dB)	0.5			0.5
Emission Voltage(V)	65, 250, 500 and 1000 gear adjustable			65, 250, 500 and 1000 gear adjustable
Communication interface	USB, Bluetooth, Wifi			USB, Bluetooth, Wifi
Working hours	more than 8			more than 8
Powder supply mode	Built-in lithium battery External 220V~16V AC/DC			Built-in lithium battery External 220V~16V AC/DC
Working environment	-10~40℃ Humidty (RH) ＜90%			-10~40℃ Humidty (RH) ＜90%
Host size(mm)	300x200x55			300x200x55

Our Advantages
Installation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
