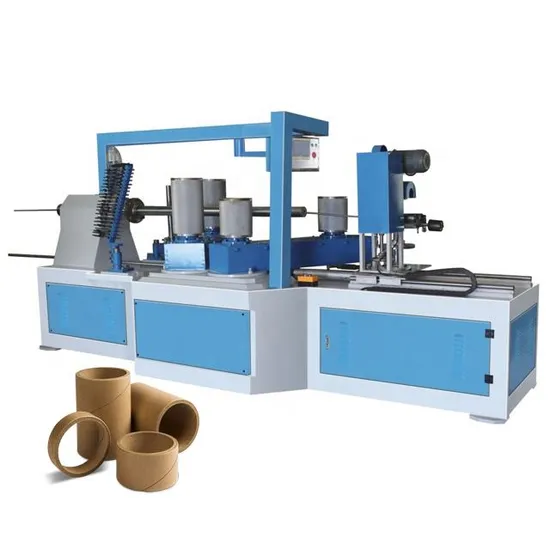

Automatic Four Heads MID. Size Spiral Paper Tube Core Making Winding Forming Machine with Cutting Range 1000-5000 mm

Product Description

product Description CFJG-100 Medium size tube & core making machine is suitable for Adhesive tape cores; textile cores; Stretch Film Cores and other industrial paper tubes & cores.
--PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be setup on the controlling panel (touch screen type) .
-- Single circular blade inline cutting system with cutting range 500-5000mm.
-- All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as your requirement. Details Images -- Inline Cutting System (Cutting length from 500mm to 5000mm; error < 2mm) 16 Layers Integral Type Paper Reel Stand 16 Layer Spraying Type Glue Unit Product Paramenters

Model No.	CFJG-100
Paper Layer	3 - 16 layer
Inner Diameter	25 - 200 mm
Wall Thickness	1-10 mm
Online Cutting Length	1000 - 5000 mm
Winding Nose	Four heads double belt
Working Speed	1-20 meters/min
Speed Regulation	By Inverter
Cutting System	Single high speed steel blade
Gluing Way	Double sides
Length Fixing	By Infrared
Working air pressure	0.6 Mpa
Power Supply	380V /3 phase /50 Hz
Operate	2 - 3 persons
Paper Reel Stand	16 layers
Glue Unit	16 layers
Inner Paper Stand	1 set
Tube Unloading Shelf	1 set
Mandrel Shaft	2 pieces
Belt	4 pieces
Extra Blades	3 pieces
Tool	1 set
Measurement	4000*1650*1800 mm
Weight	3400 kgs

Finished Products PACKAGING & DELIVERY COMPANY PROFILE Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has more than 15 years' experience on paper tube &core machine manufacturing.
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide
customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success! Certifications
