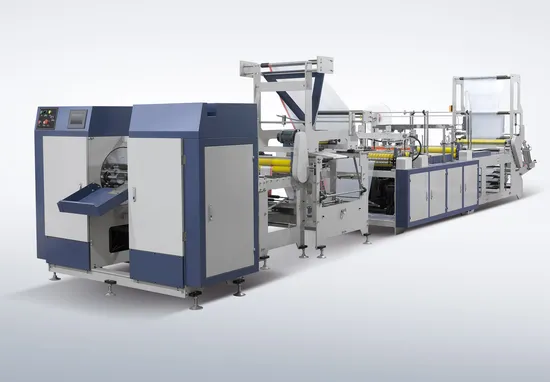

Draw Tape Continuous Drawstring Garbage Roll Bag Making Machine

Product Description

Fully Automatic Threading-rolling Drawstring Plastic Roll Trash bag Garbage bag Making Machine
Product Description
This machine is for coreless draw tape garbage bag making
The high speed draw tape perforated garbage bag on roll making machine is speacial designed for making HDPE/ LDPE and bio-degradable draw string garabage bag without core in household using.
This machine two parts separate design on the main sealing blade, ensures that drawstring part and main body are heated at different temperatures and heat-sealed firmly.
PLC and touch screen control, lead to intuitive display and convenient operation. If any fauilures occur, the touch screen will indicate the fauilure on which part of machine.
Dual servos design makes the film go thtough faster and the tension control better. Also dual PLC touch screens on machine main part and rewinder allow operators observe machine's running status easily.

Product Parameters

Model	1000 MODEL
Compressed air pressure	0.5MPa
Suitable materials	HDPE
Producing length	300-1000mm
Final product width	400-900mm
Rewinding width	350mm
Producing speed	33-80 METERS PER MIN
Film thickness	0.01-0.04mm
Max. Unwinding dia.	800mm
Max. Rewinder dia.	150mm
Weight	2500kg
Overall size	9500x2200x1900mm

Detailed Photos
After Sales Service
Offer bag-making machines with the best quality and solutions.1. Designing upon customer's project requirements.
2. Complete solutions from A to Z depending on your bag-making machine.
3. Drawing of machines and layout.
4. Machine proceeds to manufacture.Professional and dedicated after-sales service.1. Pre-shipment testing
2. Delivery to customer factory.
3. Phone services for the consumers' requirements on assembling products;
4. The video instructs the consumers on how to get the heaters to work or other problems.
