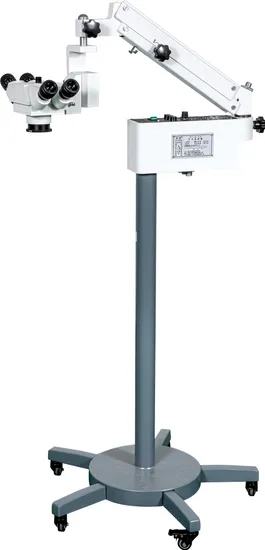

Xt-X-4A Operating Microscope Used in Orthopedics, Hand Surgery, Plastic Surgery, Urology, Gynecology and Other Surgical Microsurgery Microvascular
| US$2,200.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XT-X-4A
Material
Steel and Aluminum
Feature
Reusable
Group
Adult
Working Distance
200mm
Field of View Diameter
27.5mm
Main Mirror Total Magnification
10X
Interpupillary Distance Adjustment Range
55mm-75mm
Transport Package
Wooden Box
Trademark
xin cheng
Origin
Zhejiang, Jiangsu, China
Product Description
PurposeXT-X-4A operating microscope is mainly used in orthopedics, hand surgery, plastic surgery, urology, gynecology and other surgical microsurgery microvascular and nerve anastomosis and animal experiments.
Product Features
The imaging is clear and the body vision is strong.
Two doctors observe the same light path.
Wide field of vision, cold light source coaxial illumination.
Foot control fine-tuning, light and flexible, easy to operate and carry.
Optional Accessories
CCD system
photographic system
Technical parameters
| Main mirror eyepiece magnification | 12.5X Elfer wide-angle eyepiece objective focal length: 200mm (250mm optional) |
| working distance | 200mm |
| field of view diameter | Ф 27.5mm |
| main mirror total magnification | 10X |
| visibility adjustment range | ± 6D |
| interpupillary distance adjustment range | 55mm-75mm |
| illumination mode: coaxial cold light source illumination, 8V 50W German OSRAM halogen lamp, three-stage dimming operation surface illumination | ≥ 45000LX |
| transverse arm extension radius | 1100mm |
| fine adjustment focal speed | ≤ 2.5 mm/s |
| foot-controlled electric fine-tuning focus stroke | ≥ 40mm 10% |
| power supply voltage and frequency | 220V ± 10% 50Hz |
