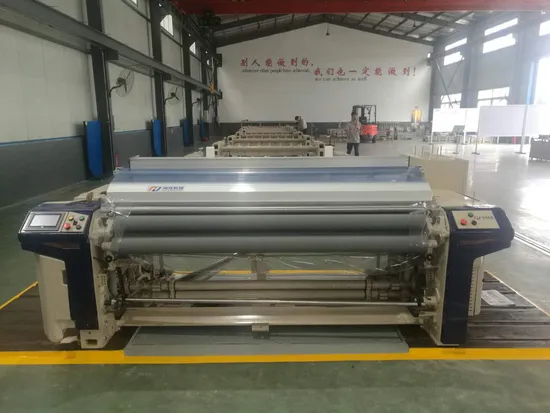

Hai Jia Brand High Speed High Quality Water Jet Weaving Textile Machine with Plain Shedding

Product Description

Company Overview
Founded in 1995, Haijia Machinery is a professional manufacturer of shuttleless looms in China integrating R&D, manufacturing, sales, international trade and services. The main products include "Haijia" brand HW series water jet looms and HA series air jet looms. After the appraisal by China Textile Machinery Association, the technical level of water jet looms produced by Haijia Machinery has reached the international advanced level, and the market share has been leading the world for many years.
The company adheres to the corporate mission of providing customers with competitive weaving solutions and services, and continues to create value for customers. With the responsibility of revitalizing national brands, it will surely become a world famous brand in the Chinese loom industry.
Machine Model
Water Jet Loom:
HW3851; HW3873 ; HW861C; HW4008; HW4010; HW4012 HW5012; HW8010
Air Jet Loom:
HA-N ; HA-9010
Machine Specification

Item		Standard specifications	option
Reed space	Nominal(cm)	150,170,190,210,230,260,280,320,340 360
	Neck in(mm)	0--600mm
Weaving scope	Weft Insertion Rate	1400-2200M/min
	Filament	8D-5000D
Weft selection		Single/Double /Three/Four Nozzle
Power		Super start motor, Direct drive Motor
	The motor rating(KW)	1.8, 2.2, 2.8, 3.0 , 3.7 ,4.0 , 4.2, 4.5
Weft insertion		Main nozzle, deputy nozzle together, use special reed	tensile
		Auxiliary main nozzle
		Deputy nozzle relay control
Shedding		Crank shedding
		Upper cam shedding
		Upper dobby shedding
Let off		Mechanical or Electronic
	Variable dis dia(mm)	800or 1000
Take up		Mechanical or Electronic
	The largest cloth diameter(mm)	φ520
	Weft density range	7.1-80.3 pick//cm(18-204pick/inch)
	Weaving length counting	Displayed on the keyboard display, with the function of scale parking
Beating-up		Crank type sley feet more beating -up mechanism
		Four linkage beating-up
Measuring weft Storage		Electric drum weft
Leno		Planetary gear type
Cutter		Mechanical scissors
Stop device	Weft stop	Reflex detector
	Warp stop		6 columns batching motion
	Other	Wring side,yarn end processing broken parking
	Fault display	Operating screen
		4 color indicator light display
Automation		The computer control system
		Monitoring and self diagnosis function

Three Dimensions Warehouse
Our company is equipped with an automatic three-dimensional warehouse, which has a total of 681 warehouse positions, which is mainly used to store important parts of looms. The automatic three-dimensional warehouse uses the computer to accurately manage the goods information, which reduces the possible errors in the storage of goods and improves the work efficiency. At the same time, the transportation of goods from the warehouse to the warehouse realizes motorized handling of goods, which is safe and reliable, and reduces the damage rate of goods. In the long run, automated three-dimensional warehouse is the general trend of warehousing in the future, which can form an advanced industrial chain and promote the progress of productivity.
Advanced CNC Workshop
The company is equipped with advanced CNC equipment, high-precision imported processing center, and adopts information management methods to achieve independent precision machining of precision parts of key parts of the loom. The processing accuracy of key parts and components reaches 0.01mm,greatly improving the whole machine Stability and startup efficiency. At the same time, we have introduced MES system to collect the processing information and equipment operation of all equipment in the processing workshop, so that managers can more intuitively understand the output of the processing workshop and effectively shorten the production cycle.
Spray Workshop
The spraying workshop adopts the fully-automatic coating production line and spraying robot independently developed by the company, and uses the same electrophoretic coating process as car that of automobile production to ensure that the inner and outer surfaces of complex workpieces are even and smooth, which greatly improves the corrosion resistance of the workpieces. Environmentally friendly surface treatment, electrophoretic coating, topcoating process, and coating film drying process are all automated to improve the quality of the workpiece coating, have the same salt spray resistance as the car, and the appearance is more excellent.Improve the corrosion resistance of the inner cavity of the workpiece, strong adhesion, long anti-rust time.
Advanced Assembly Workshop
On the basis of the whole machine assembly line, the company introduced Siemens to intelligentize the loom assembly, and realized the "mobile people do not move" production mode, that is, the pulsating production mode. Through strict quality management, fine differentiation of assembly process flow, fastening connectors with special tools with fixed torque, and strict inspection of production facilities, the quality of the overall loom is improved.
Quality Control Workshop
The use of advanced inspection and testing equipment to ensure the pass rate of production products in each process, strictly control the quality fluctuations, so as to ensure the product quality of the whole machine. Improve product production process through inspection, reduce quality cost and enhance product comprehensive competitiveness.
Customer Representative
Exhibition Site
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE,ISO,CSA
3: What about the delivery time?
A: 30-45 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment.
5. What about the Minimum Order Quantity?
A: The MOQ is 6 pcs
