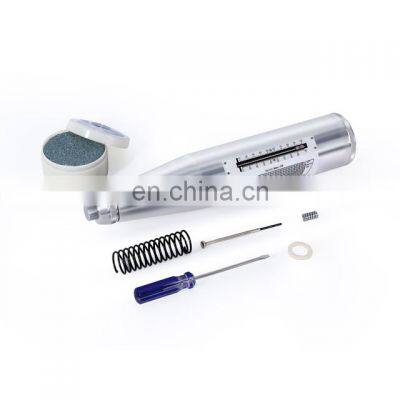

Taijia ZC3-A schmidt test hammer compressive strength civil engineering tools

Product Description

Product Description
Product DescriptionUsed for analysing the compressive strength properties of concrete.Non destructive measurement of concrete compressive strength characteristics Control of uniform concrete qualityQuickly identifies suspect concrete, is a device to measure the elastic properties or strength of concrete, mainly surfacehardness and penetration resistance.The hammer measures the rebound of a spring-loaded mass impacting against the surface of the sample. The test hammer will hit the concrete at a defined energy.FeaturesModel NumberZC3-AStandard impact energy2.207±0.1J (0.225Kgf.m)Length of spring stretch75±0.3mmRadius of spherical tip25mm±1mmStatic friction of pointer slider0.65N±0.15NMeasuring Range10~60MpaWorking Humidity≤90%RHCustomers FeedbackManufacturing TechniquePacking & DeliveryRelated productsZBL-R630A Rebar locator ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation,and distribution of rebar by using an electromagnetic induction method. Concrete test hammer steel anvil calibrationCalibration steel anvil is the supporting equipment for the concrete test hammer calibration, which is divided into ordinary type,high strength special type and so on. TEM-620XH rebar scanner TEM-620XH series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and thediameter of cover in concrete structure such as walls,columns, beam-slabs etc.Contact Us1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office at TEL:86-411-39685079Whatsapp:+8615541112235web:/
