Innovative CNC Lathe Machine with Add-on Options of Side/End Power Heads

Product Description

Model characteristics
1.35-degree slant bed design achieves high-speed, high-gloss, and high-efficiency production while ensuring smooth chip removal.
2.An extra-large X-axis with 720mm travel and Z-axis with 260mm travel facilitates tool arrangement and allows for turret and powered head installations.
3.The integrated cast-formed bed ensures machine stability and precision after assembly, housing an independent spindle unit.
4.Optional installations include: side/end power heads, side 2/3/4 with Y-axis power heads, 2+2/3+3/4+4 with Y-axis power heads.
5.Specialized in new energy, specifically for processing: extremely polished surfaces, energy storage terminals, battery pole connectors, and similar parts.
6.Upgraded simple lathe-mill compound allows the installation of up to 48 square products with flying cutter discs, enabling 4-axis coordinated movement.
7.Top-mounted bull-head style 3-axis mechanical arm for fast material retrieval, quick material changeovers, strong stability, and space-saving advantages.
Standard configuration
- New generation system
- NSK bearings from Japan
- Optional electric spindle
- Overall cast iron bed
- Taiwan Shangyin/Yintai ball screws
- Taiwan Shangyin/Yintai guides
- Optionally available without robotic arm
- Taiwan Jiancheng/Taiwan Pusen spindle
Manufactured by Dongguan Daben Intelligent Equipment Co., Ltd.
Technical parameters

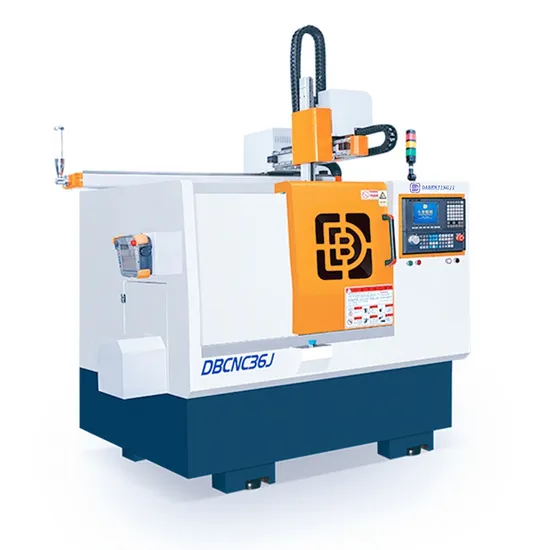

Model	DBCNC36J
Item	Describe	unit	Parameter
Spindle	Spindle nose end	/	A2-4
	Spindle bore	mm	46
	Bar diameter	mm	36
	Chuck/collet size	/	5 "/36 type collet
Machine range	Maximum slewing diameter	mm	380
	Maximum turning diameter	mm	300
	Maximum processing length	mm	250
	Tool holder plate and spindle center height	mm	55
Mechanical capacity	Maximum spindle speed	rpm	8000
	Maximum X/Z speed	m/min	30/25
Mechanical precision	Spindle indexing repeatability	/	±0.005°
	Spindle indexing positioning accuracy	/	±0.002°
	X/Z axis repeatability	mm	0.002mm
	X/Z axis positioning accuracy	mm	0.003mm
Axial travel	X-axis travel	mm	720
	Z-axis travel	mm	260
Turret	Turret model	/	63 center height
	Number of tool positions	T	8T/10T/12T
Motor power	Spindle servo motor	KW(HP)	5.5
	X/Z axial servo motor	KW(HP)	1.3
	Servo motors for milling axes	KW(HP)	0.45
Other than	Height of spindle from ground center	mm	980
	Total machine power	KW	About 7.0
	Machine external dimensions (L*W*H)	mm	About 1650*1200*3000mm
	Overall weight	KG	About 1800kg

Detailed Photos
Explore our exceptional CK-6136 Type Turret Integrated Robotic Arm CNC Lathe for precise manufacturing across various applications. Ideal for metal processing, this high-speed lathe machine guarantees precision and efficiency.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.
