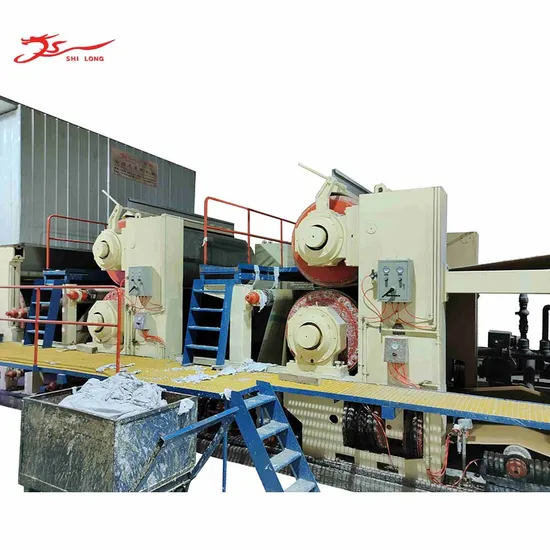

Good Price Corrugated Paper Making Machine Automatic Kraft Paper Carton Box Raw Paper Manufacturing Machine Complete Price

Product Description

Company Profile

>> ABOUT US
Qinyang Jindelong Paper Making Machinery Factory is located in Henan province, China. Which is the Chinese Advanced Leader & Manufacturer, specializing in the pulp and paper industry for more than 30 years. From process design, equipment manufacturing, factory design to installation, commissioning and training, we can provide a full range of products.
>> CERTIFICATION
>> WORKSHOP
Business Show
>> COOPERATION CASE
From 2007 to the present, with decades of processing and export experience, our factory has projects in many overseas countries, including customers in the Middle East, Africa, Central Asia, Europe and other countries, and has more than 80 production lines around the world.
Because of the excellent quality of our products, we have won the trust and new orders of many new and old customers. Product Parameters
>> PARAMETERS

Model	SL-1575	SL-1880	SL-2400	SL-2880	SL-3200	SL-3800
Paper width (mm)	1575	1880	2400	2880	3200	3800
Capacity (t/d)	5-10	15-40	30-40	45-60	50-80	100
Design speed (m/min)	100	120	120	150	200	300
Working speed (m/min)	50-80	60-100	60-80	80-120	150-180	150-250
Raw material	Waste paper, wood pulp
Paper weight (gsm)	80-250 g
Customized on demand

All our kraft machine model and available machine type: 1092, 1575, 1760, 1880, 2000, 2100, 2400, 2640, 2880, 3200, 3600, 3800, 4200 , 4400, 4800, 5200, 6000 (mm)...... Detailed Photos
>> PRODUCT PHOTOS

>> RELATED PRODUCTS

No.	Name	Function
1	Forming wire	Extract the pulp fiber to felt
2	Alloy dryer cylinder	Dry the wet paper
3	Double-layer dryer hood	Cover dryer and collect the hot&moist air diffused by dryer
4	Axial-flow ventilator	Ventilate and pull out the hot&moist air in the exhaust hood
5	Roots vacuum pump	Provide vacuum force for suction box
6	Air compressor	Provide compressed air for pneumatic devices
7	Frequency conversion controlling cabinet	Control the speed of the machine
8	Vacuum suction box	Absorb water contained in the wet paper
9	High concentration hydrapulper	Break the waste paper into pulp
10	High frequency vibrating screen	Separate and remove large impurity in the pulp
11	Impeller	Stir pulp and keep pulp well-mixed with water
12	Pressure screen	Getting ride of impurities
13	Bleacher	Bleach and whiten pulp
14	Double disc refiner	Grind, refine and fibrillation
15	Low concentration sand remover	Remove sand and impurities
16	Pulp pump	Pulp transportation
17	Electrical operation cabinet	Control machine operation
18	Boiler	Provide steam for the drying section

Raw Material&Finished Products
>> RAW MATERIAL
>> FINISHED PAPER
Packaging & Shipping
>> PACKING & SHIPPING
Large machines are different from small machines. Their export packaging is stricter than small products. In order to avoid collisions during transportation, we wrap the outer layers of the machine with wood chips and wrap them in plastic film. In order to save space in the container, we package the sporadic parts together. Installed in a spare place in the container.
