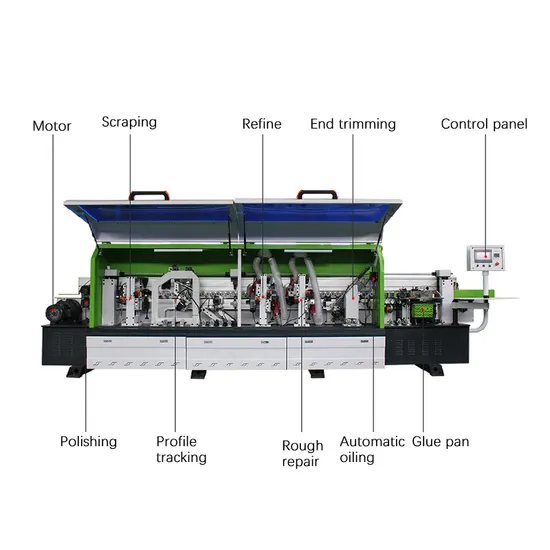

China Automatic Edge Banding Machine Pre-Milling Corner Rounding Edge Bander Machine for Furniture
| US$8,500.00 | 1 Piece (MOQ) |
Basic Info.
Type
Linear Edge Banding Machine
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
20m/min
Certification
CE
Panel Thinkness
8-50mm
Min.length panel
120mm
Min.width panel
50mm
Manufacturing Principles
Glue Tank Overhead
Customized
Customized
After-sales Service
2 Years
Premilling Motor Power Power
2.2kw*2
Gluing Motor Power
0.37kw
End Trimming Motor Power
0.55kw*2
Rough Repair Motor Power
0.55kw*2
Fine Trimming Motor Power
0.55kw*2
Tracking Motor Power
0.3kw*2
Polishing Motor Power
0.18kw*2
Lifting Motor Power
1.5kw
Total Power
10.5kw
Total Weight
1400kgs
Overall Size
6300*750*1500mm
Transport Package
Wooden Case
Specification
weight: 2000kgs
Trademark
STARTCNC
Origin
Made in China
HS Code
8479300
Production Capacity
10000sets Per Year
Product Description
Product Description| PARAMETERS | |
| Edge band width: | 10-60mm |
| Edge band thickness: | 0.4-3mm |
| Sheet thickness: | 10-55mm |
| Minimum length of sheet: | 80mm |
| Minimum width of sheet: | 80mm |
| Plate conveying speed: | 18m/min |
| Air pressure: | 0.6MPa-0.8Mpa |
| Heating power of glue box: | 1.8Kw |
| Plate preheating power: | 0.3Kw |
| Glue box transmission power: | 0.55Kw |
| Conveyor motor power: | 1.5Kw |
| The power of the head motor: | 0.37Kw*2 12000r/min.200Hz |
| Rough repair motor power: | 0.75Kw*2 18000r/min.300Hz |
| Refined motor power: | 0.75Kw*2 18000r/min.300Hz |
| Polishing motor power: | 0.18Kw*2 |
| Weight: | 1300/1450kg |
| Dimensions: | 4200*900*1600mm |
| Packing size: | 6300*900*1600mm |
FAQ
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other.so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our Services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
