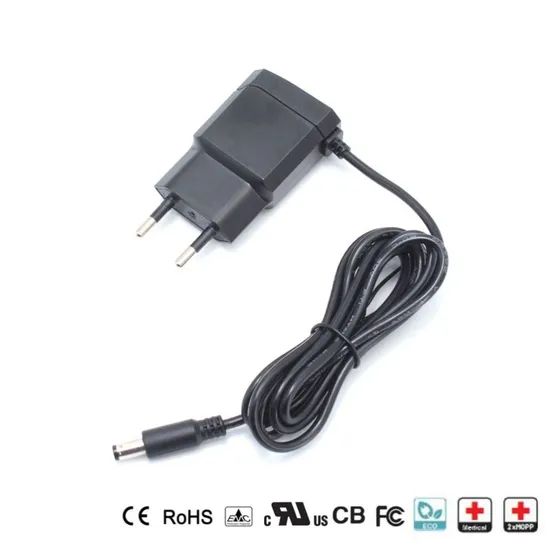

Wholesale 6V 1A 100-240V Medical Switching Adaptor Power Adapter

Product Description

Wholesale 6V 1A 100-240V Medical Switching Adaptor Power Adapter
Product Description Features : 1. Univeral AC input/ Full range
2. Medical safty approved(2×MOPP)
3. Leakage Current: <50μA
4. Extremely low leakage current
5. Protection:Over load/Over voltage/Short circuit
6. Withstand voltage : 4KV
7. Life Warranty: 3 years
Applications:
- Blood glucose meter
- Blood pressure meter
- Medical Injection Equipment
- Medical ventilator
- Oral care equipment

Model:	YS5M-0301000	YS5M-0501000	YS5M-0600800	YS5M-0900500	YS5M-1200400	YS5M-2400200
Power:	5W
Input:	AC100-240V
Output Voltage:	3V DC	5V DC	6V DC	9V DC	12V DC	24V DC
Output Current:	0-1A	0-1A	0-0.8A	0-0.5A	0-0.4A	0-0.2A
Inrush Current:	65 Amps max. at 240VAC/50Hz,full load
Leakage Current:	<50μA
No Load Power Consumption :	<0.5W
Protections:	Short Circuit /Over Current /Over Voltage/over temperature protection
Short Circuit Protection (SCP):	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Withstand voltage:	I/P-O/P 4kVAC
Working TEMP.:	-20°C-50°C
EMC standards:	EN55011 class B,EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN60601-1-2 medical level,FCC Part 15 class B, EAC TP TC 020
Safety standards:	ANSI/AAMI ES60601-1/ES60601-1-11,CAN/CSA-C22,TUV EN60601-1-11,EAC TP TC 004 approved
Dimension:	59.5*38*21mm
