New Design 4X4 Offroad Winch 12000lb for Jeep Wrangler Jk

Product Description

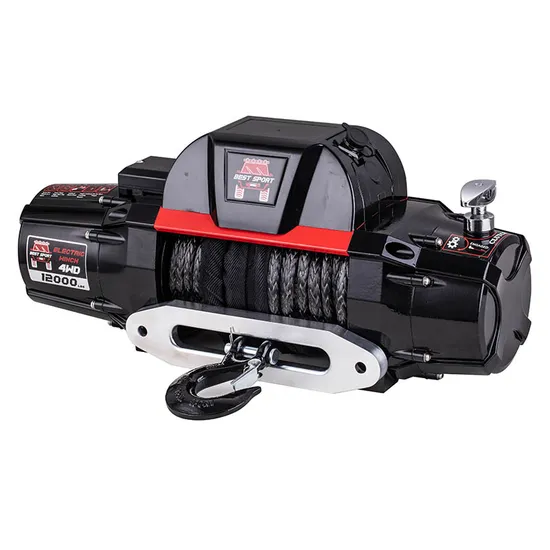

New design 4x4 offroad winch 12000lb for Jeep Wrangler JK
Line Pull: 5,443kgs/12,000lbs
Motor: Series Wound DC12V/6.6hp
Gear Train: 3-stage planetary
Gear Ratio: 216:1 or 150:1
Free-spooling Clutch: Rotating ring gear
Synthetic Rope Size: Φ3/8"×100'(Φ9.5mm×27m)
Drum Size: Φ2.5"×8.8"(Φ64mm×224mm)
LINE PULL

Layer of Wire Rope	Max Line Pull
1	12,000lbs/5,443kgs
2	10,270lbs/4,658kgs
3	9,200lbs/4,173kgs
4	8,450lbs/3,833kgs

LINE SPEED AND AMP DRAW (1st layer of rope on the drum)

Load	Line Speed	AMP Draw(12V)
No Load	31.8FPM/9.7MPM	75
4,000lbs/1,814kgs	21.6FPM/6.6MPM	195
6,000lbs/2,721kgs	17.7FPM/5.4MPM	240
8,000lbs/3,628kgs	13.4FPM/4.1MPM	291
10,000lbs/4,536kgs	11.2FPM/3.4MPM	335
12,000lbs/5,443kgs	7.9FPM/2.4MPM	350

DIMENSIONS: 557 x 165 x 260mm (21.9" x 6.5" x 10.2")
Mounting Bolt Pattern: 254mm x 114.3mm (10" x 4.5")
STANDARD ACCESSORIES
Synthetic Rope With Hook
Hawse Fairlead
Control Unit
Controller
Wireless Remote
Mounting Hardware
Hand-saver Strap
PACKAGE
Winch Weight: 32kgs/70.4lbs
Gross Weight: 34kgs/74.8lbs
Box Dimension: 630×245×405 mm (24.8"×9.6"×15.9")
• 20% higher loading test than rated line pull.
• Heavy duty series wound motor delivers superior torque output and faster line speed.
• 3-stage planetary gearbox delivers the most reliable and durable performance.
• Automatic brake in the drum provide powerful braking.
• Rotating ring gear clutch for the rapid rolling out of rope with ease.
• Installation, operation and maintenance with ease.
• Much lower working noise.
• Waterproof IP67 certification.
• CE, RoHS certification.
Package: Carton
Weight: 34kg
Carton Size: 63×25×41cm
Delivery time: 15-30 days
