ES-RFC series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. Based on advanced technology overseas and designed, It allows the machine to fill different type of the bottles. Not only drinking water filling machine, also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.
Mineral Water Filling Line Specifications:
Automatic PET Bottle Water Filling Machine
Model:RFC-883(8washing heads, 8 filling heads, 3 capping heads)
Production capacity : 2000BPH for 500ml

Function Description:
The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar, wine, fruit wine, mineral water and pure water. The line has features of unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automatization. It is the best filling equipment in China.

SPECIFICATION DETAILS:

Head of Washing, Filling, Capping	8, 8, 3
Production Capacity	1000-2600BPH
Bottle Size	Diameter=50~108mm, H=170~340mm, 330~2.25l
Spraying Pressure	2~3 Kg/cm2
Motor Power	Main motor: 1.5KW
Power of Outer Vacuum Pump	0.75kw
Machine Size	2,100 x 1,400 x 2,500 mm
N.W.	2500 Kg
Body Material	SUS304 stainless steel
Inverter & PLC	Japan Mitsubishi
Air Valve	Taiwan AirTac
Capping Technique	Italy AROL
Heads of Washing & Filling	Ozone-resisting material
Filling Valve	304L stainless steel
Washing Pressure	0.2~0.25MPa
Bottle Clip & Fill	Bayonet style
Sealing Technique	Italy AROL sealing technique, revolve lids with magnetic force which down the wastage rate greatly.

1) Conveying process:
By adopting bottle-neck clamping design, or Hanging Type Bottle-Conveying System, the DCGF series can adapt many different shapes of bottles easily. It can be applied to your producing line directly with much less auxiliary units as well as inconveniences needed.

2) Filling process:
The DCGF series adopt Micro-Pressure technology which makes the filling process faster and more stable without losing pin-point filling accuracy.

3) Washing process:
Spring clamps are applied in the bottle washing unit. Empty bottles can be turned over by 180 degrees along the conveying rail. Two times of internal and external washing can guarantee the bottle washing quality

4) Sealing process:
Magnetic torque technology is used for cap screwing. The force of cap screwing can be adjusted continuously without grade. This function guarantees a low defect rate of capping process.
5) Cap supplying process:
Air-powered horizontal swirl cap sorting device is applied in cap supplying process, in order to prevent cap from being scratched. And shortage of cap in Cap-Storing-Tank can be sensed out by sensors which can let out an alarming. After that, more caps can be reloaded automatically.
Washing part

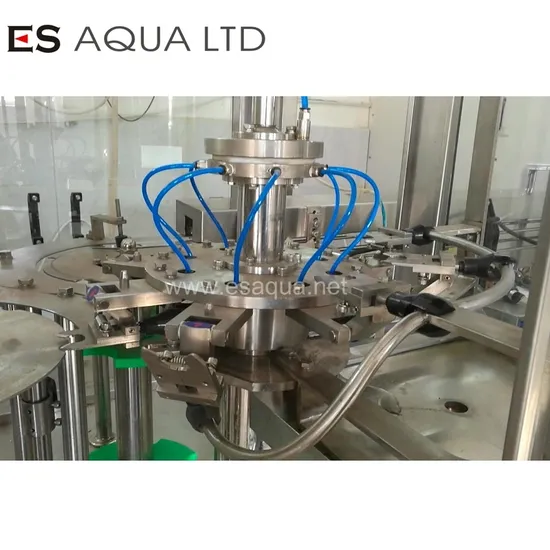

Filling part
Capping part

Water Bottle Filling Machine / Mineral Water Bottling Plant Parameter:
All parts that have direct contact with water are made of SUS304 stainless steel. The key electronic components are introduced from world-famous brand name companies such as Mitsubishi and Omron, etc. And pneumatic devices are also introduced from Japan and Italy.

Model	RFC 10-10-3	RFC 18-18-6	RFC 24-24-8	RFC 32-32-10	RFC 40-40-12	RFC 50-50-15
Rinsing nozzles	10	18	24	32	40	50
Filling nozzles	10	18	24	32	40	50
Capping nozzles	3	6	8	10	12	15
Output(@500ml)	4000BPH	6000BPH	8000BPH	14000BPH	18000BPH	24000BPH
Applicable bottle size	Diameter=50~108mm, H=170~340mm, 330~2250ml
Pressure of air source	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa
Air Consumption	0.25M3/min	0.8	0.8	0.8	0.8	1
Pressure of spraying water	0.2-0.25MPa
Consumption of rinsing water	1T/H	1.2T/H	1.2T/H	2T/H	2.2T/H	2.5T/H
Pressure of filling	0.2-0.3MPa
Power consumption	2.5kw	3.5kw	4kw	5.5kw	6.5kw	8kw
Machine body	SS304
Machine size(L*W*H,mm)	2100*1800*2400	2300*2200*2400	3000*2200*2800	4000*2600*2800	4700*2900*2800	5100*4800*3000
Machine weight(kg)	2500	3000	4000	5000	6000	7500
PLC	Japan Mitsubishi

Brands

No.	Item	Description
1.	Material	Stainless steel 304
2.	Filling valve	Stainless steel 316
3.	Main motor+ Reducer	SEW (Germany )
4.	Rinsing pump	CNP(China )
5.	Inverter	SIEMENS (Germany )
6.	PLC	Mistubishi (Japan )
7.	Touch screen	SIEMENS (Germany )
8.	Contactor	SIEMENS (Germany )
9.	Hot relay	SIEMENS (Germany )
10.	Air switch	SIEMENS (Germany )
11.	Approaching switch	TURCK (Germany )
12.	Photoelectric switch	BANNER (Germany )
13.	Pneumatic components	FESTO (Germany )
14.	Sliding bearing	Igus (Germany )
15.	Lubrication system	BEKA(Germany)
