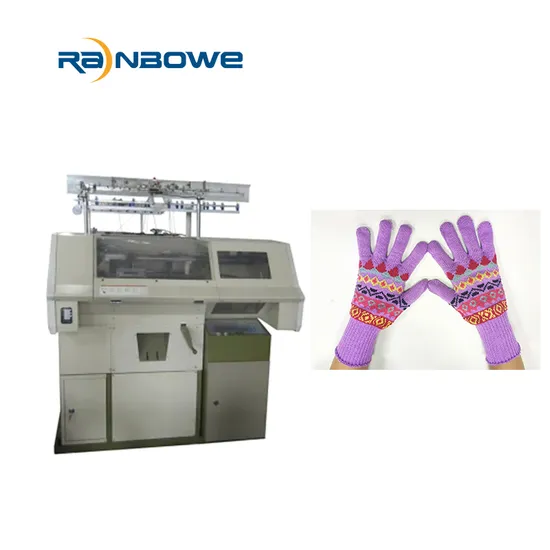

High Efficiency Jacquard Knitting Machine with LED Operation

Product Description

Product Description

Needle Count	7		10
Size	Glove	Five-Toe Socks	Glove	Five-Toe Socks
L Machine Type	L: 48	L: 46	L: 64	M: 60
	M: 43	M: 41	M: 59
	S: 38		S: 54
S Machine Type	S: 38	S: 36	S: 54
	S2: 33		S2: 49
	S3: 28		S3: 44
Max Speed	Short (Finger): 90 rpm		Short (Finger): 95 rpm
	Long (Palm): 180 rpm		Long (Palm): 190 rpm
Drive Mode	Servo transmission system
Knitting System	Sink slice weave system
Motor	AC servo motor 220V, 180W
Automatically Stop	Yarn break, overload, wrong direction, low battery, drop badness, rubber root yarn broken, quantity finished
Control Mode	E-control
Operation Screen	LCD screen and keyboard input
Electricity	single direction AC 220V

1. Enjoy finger polychromatic jacquard function
2. Muti-functional choice: round and global figure, the thumb can be selected for knit in edge or in midpalmar.
3. Five-fingered type,Ingot-finger type,half- finger type,global- finger type,five-toed type, etc. can be knitted. Gloves of special specifications can be finished by self-defining.
4. Long journey can reach above 160rpm which improves 10% than used mechanical jacquard glove machines.
5. Simplify mechanical transmission equipment. Specifications and the patterns are easy to be changed, the machine needn't to be adjusted, which makes maintenance cost lower and efficiency.
Needle board Electronic needle selecting system Yarn carriers
The new multi-functional and high efficiency jacquard knitting machine adopts the colorful LED operation display screen, which can provide clear text data & patterns , and the operation interface is very user-friendly. The pattern and software are transmitted by USB, it can be adjusted at any time according to production requirements, which realizes the speed and convenience of textile jacquard knitting machines.
