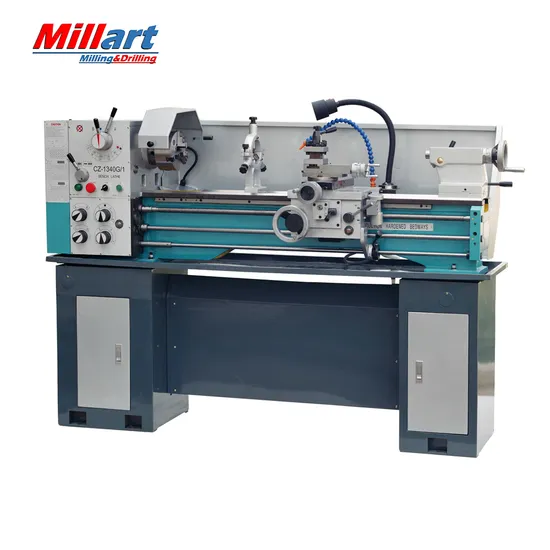

Precision Bench Lathe Machine CZ1440g/1 Small Turning Lathe Machine
| US$2,100.00-2,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CZ1440G/1
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE
Condition
New
Swing Over Bed
355
Swing Over Carriage
220
Swing Over Gap
500
Width of Bed-Way
186
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
L&T
Origin
Tengzhou China
HS Code
8458190000
Production Capacity
200PCS/Month
Product Description
Precision Bench Lathe Machine CZ1440g/1 Small Turning Lathe MachineFeature :
Engineered from high grade castings
V way bed ways induction hardened and ground
Gap bed
Cross and longitudinal interlocking feed, enough safety
ASA D4 cam-lock spindle nose
Various thread cutting function
Technical Parameter :
| Model | Unit | CZ1440G/1 |
| Swing over bed | mm | 355 |
| Swing over carriage | mm | 220 |
| Swing over gap | mm | 500 |
| Width of bed-way | mm | 186 |
| Distance between centers | mm | 1000 |
| Spindle taper | M.T.5 | |
| Spindle bore | mm | 38 |
| Step of speed | 8 | |
| Range of speed | rpm | 70~2000 |
| Head | D1-4 | |
| Metric thread | 26kinds (0.4~7mm) | |
| Inch thread | 34kinds(4~56T.P.I) | |
| Longitudinal feeds | mm/r | 0.052~1.392 |
| Cross feeds | mm/r | 0.014~0.38 |
| Diameter of lead screw | mm | 22 |
| Pitch of lead screw | 3mm or 8T.P.I | |
| Saddle travel | mm | 1000 |
| Cross travel | mm | 170 |
| Compound travel | mm | 74 |
| Barrel travel | mm | 95 |
| Barrel diameter | mm | 32 |
| Taper of center | mm | M.T.3 |
| Motor power | Kw | 1.5(2HP) |
| Motor for coolant system | Kw | 0.04 |
| Packing size(L×W×H) | mm | 1920×760×760 |
| Machine | Kg | 510/565 |
| Stand | Kg | 70/75 |
