H. 264 1080P HDMI Video Encoder for Broadcasting

H. 264 1080P HDMI Video Encoder for Broadcasting

US$122.00-199.00 100 Pieces (MOQ)

Basic Info.

Model NO.
Encoder
Certification
CE, RoHS
Condition
New
Specification
customization
Trademark
caratar
Origin
China

Product Description

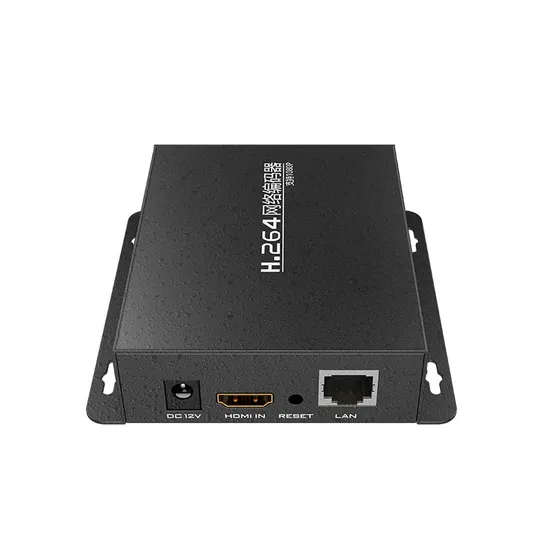

H.264 1080P HDMI video encoder for broadcasting Product Features:

The main and sub-group streams are more reliable
HDMI high-definition 1920x1080p
Support H.264 high efficient video coding, clearer image, lower occupied bandwidth
Pure hardware coding, more stable and reliable
Support subtitles, logos, etc.
Live broadcast platform, main and sub-group push stream
Compatible with various live broadcast platforms
Easy to operate, no settings required
Support multiple resolution custom settings
Metal shell, fast heat dissipation


Technical Parameters:

Specifications
parameter
Audio and video input
Video input
1 port HDMI

Audio input
1 port HDMI built-in audio
Video coding
Coding type
H.264

Coded frame rate
5-60 adjustable

Key frame interval
5-300 adjustable

Bit rate (kbit)
32-32000 adjustable

Coding resolution
1920x1080/ 1680x1056/ 1280x720/1024x576/ 850x480/ 720x576/ 720x540/ 720x480/ 720x404/ 704x576/ 640x480/ 640x360/ 608x448/ 544x480/ 480x480/ 480x384/ 480x360/ 480x332/ 480x272/ 480x270/ 400x320/ 400x224/ 352x480/ 352x352/ 352x228/ 320x256/ 320x240/ 320x180/ 240x180/ 176x144/ Same as input resolution

Code stream control
CBR/VBR optional

Stream
Support RTMP/ RTSP/ HTTP FLV/ HLS/ UDP multicast/ RTB multicast
Audio coding
Coded sampling rate
44100/48000 optional

Coding method
AAC+/ AAC++/MP3/ MP2/AC3 optional

Coding bit rate
AAC:48000-320000adjustable / AAC+:2400-48000adjustable / AAC++:12000-320000 adjustable / MP3:64000-320000adjustable / MP2:64000-320000adjustable / AC3:40000-640000adjustable

Digital volume
-50 ~ 50 adjustable

RTSP stream uses G711A encoding
Disable/ Enable optional
OSD
Transparency
0-128 adjustable

Type
Text/ picture/ scrolling text

Area
4 areas available

X coordinate
0-1920

Y coordinate
0-1080

LOGO
4 logos can be uploaded for selection

Font size
8-72

Background color
Transparent/ white/ black

Font color
RGB color is optional
General use
Network
Support Gigabit networks

Configuration management
Configuration management via the WEB

ONVIF
Support ONVIF search browsing videos

Power
DC 12V, 1A

Power consumption
4W

Operating temperature
-20ºC - 60ºC

Operating humidity
<90%, no condensation

Dimension
10.4x10.4x2.7cm(includes wall hanging)

Packing List


Network Encoderx1
Power adapter x1
HDMI cable x1
User manual x1
