Dial Co-Axial Centering Alignment Indicator Metric Locate Workpiece Centre - Simple Method of Centering a Workpiece, Fixture or Assembly

Product Description

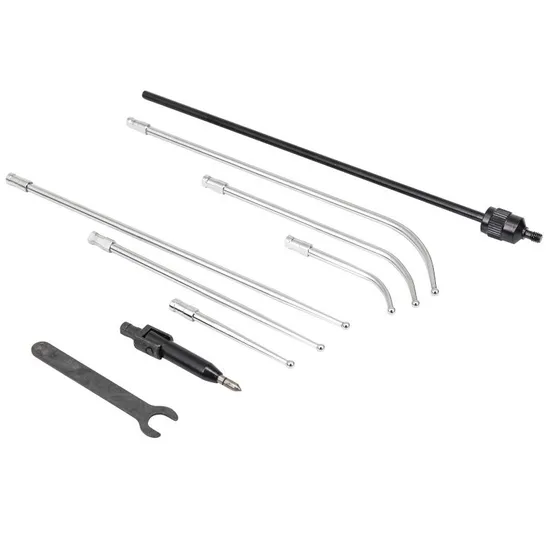

Key Features Locate Workpiece Centre - Simple method of centering a workpiece, fixture or assembly Internal and External - Find the centre on internal or external diameters Easy Operation - The outer body and indicator dial remains stationary while the center spindle with the feeler attached rotates This allows the indicator dial to always face the operator. A retaining arm is included to hold the head in a convenient position Large Diameter Working Area - The combination of straight and offset feelers in different lengths allows a large work area to be covered Metric Dial - The dial has a metric scale used as a reference, when finding the center Hand or Motor Spindle Driven - The machine spindle can either be rotated by hand or using the motor up to a maximum of 500 rpm Included with the CO-AX Centering gauge - Main body with indicator dial, 3 off straight feelers, 3 off curved feelers, center locating feeler, spanner, retaining arm, storage case and instructions Dial diameter - 40mm (1 5/8inch) Body length - 120mm (4 5/8 inch) Spindle length - 20mm (12/16 inch) Spindle Diameter - 10mm Straight feeler - 40mm (1 9/16inch), 90mm (3 9/16inch), 144mm (5 11/16inch) Curved feeler - 42mm (1 11/16inch), 92mm (3 5/8inch), 142mm (5 5/8inch) Weight(g) Type Brand MPN GTIN Equivalent Parts Condition

823.000000

Centering Indicator

Machine DRO

ME-DIAL-CENT

5055396109306

ME-DIAL-CENT-1

new
