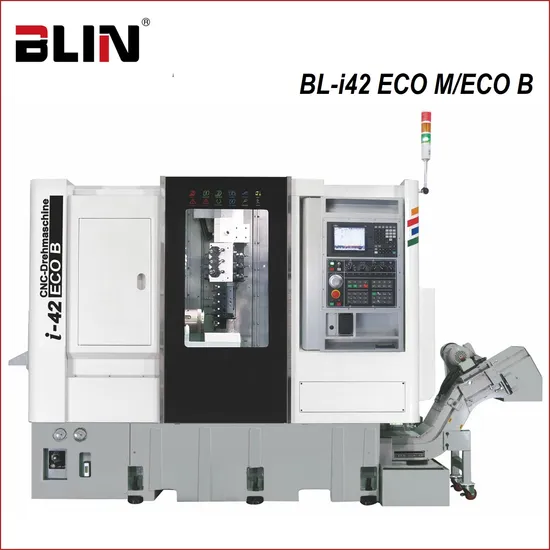

Chinese Slant Bed CNC Lathe Machine Price (BL-I42 ECO M/B)
| US$55,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
BL-i42 ECO M/B
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Gang Tool/8 Station
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Machineable Bar Dia.
42mm
Main Spindle Bore
43mm
Max. Machineable Length
230mm
Spindle Nose Type
A2-5
Spindle Motor
5.5/7.5kw
Main Spindle Speed
4500
Transport Package
Plywood Case
Specification
2350*1700*1900
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Chinese slant bed cnc lathe machine price(BL-i42 ECO M/B)
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand - Max 6 axe and 4 axes simultaneous movement,multifunctional and high precision
- Adopt high quality FC35 MEEHANITE cast iron,hardness is higher than HRB190,high rigidity - Adopt high precision permanent magnetism electric spindle,magnet ring encoder, JAPAN high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm
- Adopt high precision ball screw and linear guideway
- i42 ECO M without B axes, i42 ECO B mount free angle 360°index B axes to realize all angular machining
Details:
| Item | Unit | BL-i42 ECO M | BL-i42 ECO B |
| Max. machineable bar dia. | mm | Φ42 | |
| Main spindle bore | mm | Φ43 | |
| Max. machineable length | mm | 230 | |
| Spindle nose type | / | A2-5 | |
| Spindle motor | kw | 5.5/7.5 | |
| Main spindle speed | rpm | 4500 | |
| Spindle flopping | mm | 0.002 | |
| B1 axes resolution ratio | ° | / | 0.001 |
| B1 axes indexing | ° | / | 360 |
| B1 axes index time | s | 0.3(one),0.6(full) | |
| C1 axes resolution ratio | ° | 0.001 | |
| X1/Y1/Z1 axes rapid moving speed | m/min | 30 | |
| X1/Y1/Z1 axes travel | mm | 150/410/250 | |
| O.D./I.D. tool qty | pcs | 6/5 | |
| O.D. tool size | mm | 20 | |
| I.D. tool max dia. | mm | Φ20 | |
| Live tool qty | pcs | Axial 3+radial 3 | 3×4 |
| Live tool power | kw | 2.4 | |
| Live tool collet | / | ER20 | |
| Repeatable positioning accuracy | mm | ≤0.003 | |
| Overall size | mm | 2350×1700×1900 | |
| N.W. | kg | 3000 | |
Main parts brand:
| Item | Brand |
| CNC controller | TAIWAN-SYNTEC 22TB |
| Servo driver&motor | TAIWAN-SYNTEC |
| Permanent magnetism electric spindle | Own-made |
| Ball screw | TAIWAN-HIWIN/PMI |
| Linear guideway | TAIWAN HIWIN/PMI |
| Spindle bearing | JAPAN-NSK |
| Ball screw bearing | TAIWAN |
| Lubrication system | TAIWAN-ISHAN |
| Collet chuck | TAIWAN-AUTOGRIP |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Nuts | TAIWAN-YINSH |
| B axes | TAIWAN-GSA |
| Shaft coulping | TAIWAN |
