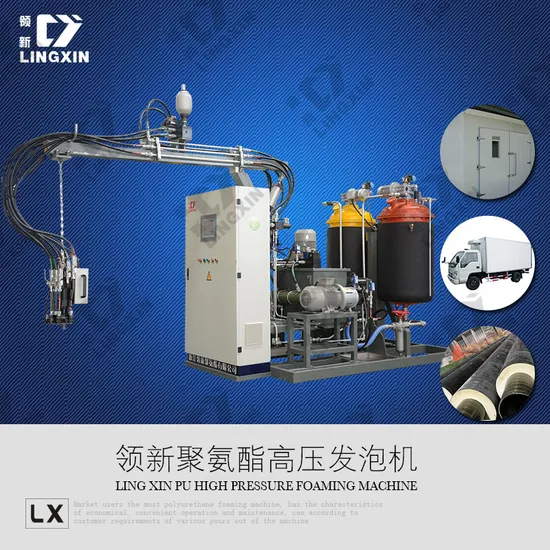

PU Movable House Wall Panel Foam Filling Machine/PU Foam Machine
| US$1,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LXPU-H
Principle
High-Speed Impeller Type
Automation
Automatic
Computerized
Computerized
Certification
CE
Transport Package
Plywood Case
Specification
3800*1900*2300
Trademark
Lingxin
Origin
Mainland China
HS Code
8477409000
Production Capacity
5sets/Month
Product Description
COMPANY INTRODUCTION VIDEO LINKE: https://youtu.be/ZbQmDYK5p-EEquipment Overview:
PU foaming machines have wide application in the market, which have the features of economy and covenient operation and maintenance, etc.. The machines can be made according to customers' requirement for various flow rate.
Equipment Characteristics:
1.For sandwich type material tanks, it has good heat preservation.
2.The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation of machines easy to see.
3.The adoption of new type mixing head makes the mixing even, the noise low and the machine sturdy and durable.
4.The imported pumps make the measurement accurate.
Technical Parameters:
| Injection Output: | 50-5000g/s | Repeat injection accuracy: | ±1% |
| Material tank volume: | 250L-500L | Compressed air needed: | Dry,oil free P:0.7Mpa Q:600NL/min |
| Injection pressure: | 10-20Mpa(adjustable) | Temperature control system: | Heat: 2×9Kw |
| Mixing ratio range: | 1:5~5:1(adjustable) | Input power: | Three-phase five-wire 380V |
| Injection time: | 0.5~99.99S(correct to 0.01S) | Total power: | 39KW-123KW |
| Material temperature controlling error: | ±2ºC | Raw material viscosity(22ºC): | POLY ~2500MPas ISO ~1000MPas |
