Bzg-1200d Acrylic Sheet Plastic Bending Machine

Product Description

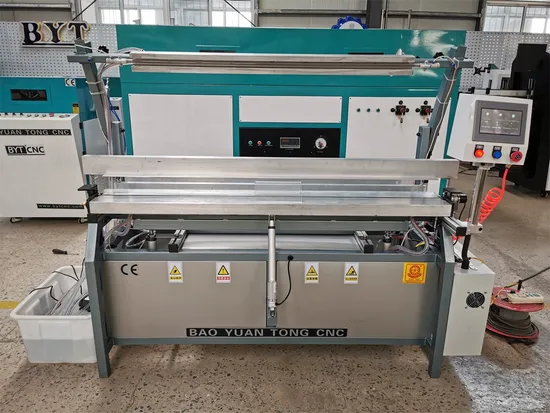

BZG-1200D Acrylic Sheet Plastic Bending Machine
Application industries
Advertising, automotive, home appliances, household goods, engineering, decoration, machinery and other plastic sheet bending industry. Features
1. The heating width is adjustable. Right-angle or small arc bends can be made.
2. Temperature adjustment. The heating temperature of the heating tube can be adjusted according to the thickness and material of the sheet.
3. Timing. The single working time of the heating tube can be set according to the thickness and material of the sheet.
4. Backer. The role of the backer is for plate positioning during mass production. Adjust the position of the backer according to the bending size requirements to ensure the size is uniform in the same batch of production
5. Fully automatic bending. Heating-bending-cooling and shaping-fliping return-pressing shaft return-taking out the product can be carried out according to the requirements. The entire process works automatically.
6. Cast aluminum table. The flat and smooth aluminum table can ensure that the arylic sheet is not damaged; the cooling speed is fast; the product is not easily deformed after bending.
7. Heater lift function. When heating, the lower heater rises to heat the plate; when the plate is shaped, the heater descends to speed up the cooling speed of the plate.
8. CNC bending. The entire work process is fully controlled by touch screen , and the time and angle can be set on the touch screen. More precise and more convenient to adjust the angle.

Model	BZG-1200D	BZG-1800D	BZG-2400D	BZG-3000D
Power	4KW	5KW	6KW	6KW
Effective bend width	1240mm	1830mm	2440mm	3040mm
Voltage	220V 50HZ 1P
Effective bending length	Unrestricted
Maximum heating temperature	350ºC
Bending angle	60-179°
Bend type	Sharp angle, rounded corner
Processing sheet thickness	0mm-20mm
Molding bar working mode	Air pressure
Mold pressure bar pressure	0KG-150KG
Mold press bar working speed	1''-10''/time (Adjustable)
Maximum capacity of the water tank	30L	30L	50L	50L
Net Weight(kgs)	100	140	180	220
Overall Size(mm)(L*W*H)	1620*680*860	2220*680*860	2820*680*860	3250*650*950

Sample showing :
Customer feedback: FAQ:
Q1 Which material can use ?How to choose plastic bending machine ?
A1 Plastic bending machine can use PMMA(Acrylic ), PVC,ABS,PE,PET thermoplastic material .
About how to choose bending machine ,usually we need to know below questions
1) The material type and material thickness ,only need less than 4mm or also want to bending 15mm thickness
2) Bending width
3) Sample pictures
Q2 For this machine what is the working voltage,if you accept the customized voltage ?
A2 This machine working voltage is 220V 50HZ 1P
customized voltage,for example 220V/60HZ/1P ,1110V/60HZ/1P .
Q3 When this machine working ,if it need any accessory equipment ?
A3 This machine working use air pressure , so you need prepare air compressor ,usually below type air compressor is ok Power:1600W ,Exhaust flow: 0.14M3/MIN, Rated exhaust drang:0.7Mpa ,Tank volume:30L
Q4 After I buy this machine how you arrange training ?
1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .
2) After the machine delivery ,our sales-service engineer will contact with you and inform you ,when receive the machine contact with him ,he will service for you.
3)When you use this machine , any questions you can contact with our after-sales service ,they provide 24Hours/7Days online service
