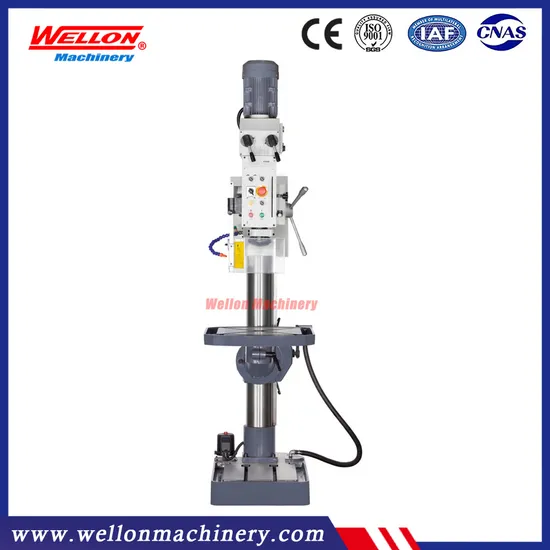

Vertical Drill Press Machine Z5040E Driller Machine

Product Description

Product Description
Detailed Photos

Product Parameters

Performence Features: 2 speed strong power motor, 18 steps speed which can improve the machining accuracy and producing efficiency.
2 steps power feed 0.1-0.2mm/rev.
Drilling, tapping, boring, reaming;
Automatic tools ejectors
Strong column, table can rotary and tilting, Gear drive, lower noise;
Technical parameter:

MODEL	Z5040E
Max. drilling capacity	Φ40mm
Max tapping in steel & cast iron	M20 & M24
Spindle travel	180mm
Spindle taper	M.T.4
Spindle feed range	2steps/0.1-0.2mm/rev
Spindle speed	50-1450 rpm
Width of T-slot	18mm
Distance from spindle axis to column	350mm
Distance from spindle nose to table	770mm
Distance from spindle nose to base	1210mm
Diameter of column	150mm
Table size	560×560mm
Base size	730×500mm
Motor power	0.85/1.5kw
N.W/G.W	465/615kg
Packing size	2270×690×1100mm

Standard accessories:
Work light.
Coolant system.
Drill chuck and arbor
Fender device
Tool box & tools 1 set.
Auto feed
Lifting worktable by motor
Optional accessories:
Machine vice
