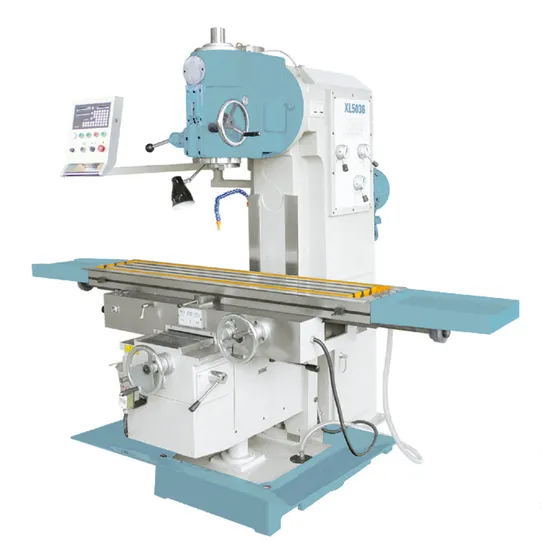

XL5036/XL5036CL 12 steps speed Vertical Milling Machine
| US$3,988.00-15,898.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XL5036/XL5036CL
Type
Tool Milling Machine
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
T-slots(No./Width/Pitch)
3/18/80
Cross travel
320mm
Vertical travel
450mm
Table feed(X/Y/Z)
30-750/20-500/15-375 8steps
Spindle taper
7:24 ISO50
Spindle speed range
50-1475r.p.m
Max.swivel angle of vertical milling hea
±30°
Transport Package
Standard Export Packaging
Specification
2900/3000kg
Trademark
MFGSP
Origin
China
Production Capacity
2000sets/Year
Packaging & Delivery
Package Size
230.00cm * 220.00cm * 230.00cm
Package Gross Weight
3100.000kg
Product Description
CNC Vertical knee-type milling machineHead stock swivels ±30°
Milling head adopts cyclic and forcible lubrication to extend working life
Spindle is driven by gears,12 steps speed ,the machine is applied to heavy cut
Machine with automatic feed controlled one servo motor in XYZ-axis
Use one handle to control forward and reverse movement in XYZ-axis
| Specification | Unit | XL5036C | XL5036CL |
| Table size | mm | 1325x360 | 1600x360 |
| T-slots(No./Width/Pitch) | 3/18/80 | ||
| Longitudinal travel | mm | 1100 | 1300 |
| Cross travel | mm | 320 | |
| Vertical travel | mm | 450 | |
| Table feed(X/Y/Z) | mm/min | 30-750/20-500/15-375 8steps | |
| Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | |
| Spindle taper | 7:24 ISO50 | ||
| Spindle speed range | r.p.m | 50-1475 | |
| Spindle speed step | steps | 12 steps | |
| Spindle travel | mm | 70 | |
| Max.swivel angle of vertical milling head | ±30° | ||
| Distance between spindle nose and table surface | mm | 50-500 | |
| Distance between spindle axis and column guideway | mm | 378 | |
| Torque of X/Y/Z axis AC servo motor | N.m | 15 | |
| Main motor power | kw | 5.5 | |
| Overall dimensions(LxWxH) | mm | 2245x2100x2150 | 2520x2100x2150 |
| Net weight | kg | 2900 | 3000 |
