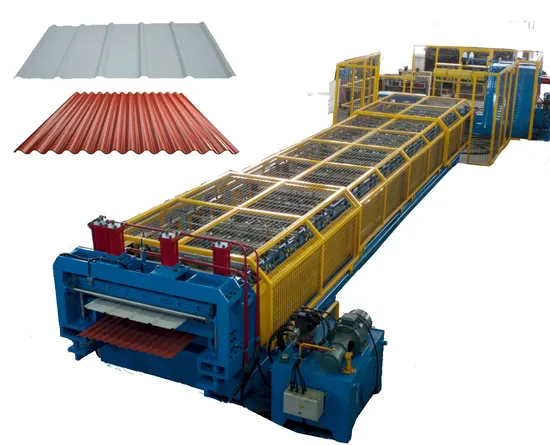

Building Material Automatic Metal Ibr Roof/Roofing Iron Sheet and Corrugated Roof Sheet Tile Panel Cladding Cold Roll Forming Making Machine with Double Layers

Product Description

1.The Chart of Process Flow
YX18-76-1000 Roof Profile:
YX32-250-1000 Roof Profile:
2.Technical Parameters
The main technical parameters are for your inference only.
Only if you provide the profile required or the real objects of sectional materials, and we will offer the accurate parameters.

1.5Tons un-coiler
Description	There are different choices, please turn to the catalogue of un-coiler
2. Manual Pre-shearing device
Function	un-powered Dual Leveling Smart cut control, to cut off the end of the final piece of sheet only
Shearing Thickness	Up to Max. 0.6mm (if thickness > 0.6mm, then hydraulic pre-shearing device or electric pre-shearing device instead )
3. The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	0.4mm-0.6mm
Feeding width	1200mm
Frame design	Wall-plate-frame-design
YX18 Roll stages	20 stages
YX32 Roll stages	19 stages
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75/Φ95mm
Main motor power	11KW with reducer
Max. Line speed of roll former	15m/min (Higher speed is available, depends on the specification required by the buyer)
Attention: The two levels can't be run at the same time Manual Clutch to switch the driven system The two profiles share one un-coiler/ base frame/ main motor for roll former/ hydraulic cutting carriage/PLC control system
Hydraulic group power	7.5KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements
4. PLC Control system
PLC	Siemens brand (ABB brand is available if required)
Touch Screen	Siemens brand (ABB brand is available if required)
Encoder	Omron brand
5.Product rack
Description	un-powered, 3 units
Option: Dual pneumatic stacker CE certificate Pl refer to the attached pictures for details
6. Service after sell
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements. Installation: (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation. (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians. a) Position the machine in the buyer's factory. b) Prepare necessary electric wiring. c) Prepare material of trial running. d) Provide labors for assistance and installation during installation. e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.
7. About us
Please visit the web site: liming2018.en.made-in-china.com for detailed information

Below pictures are for your reference only
After-Sale Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free.
The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.

Terms Of Trade
Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
