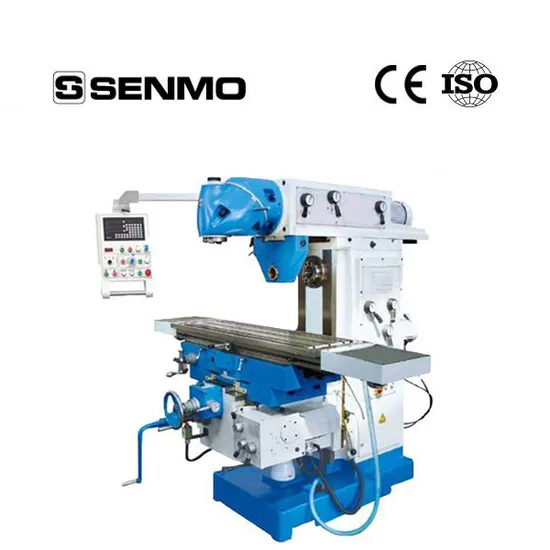

Universal Milling Machine X6436 High-Quality Universal Swivel Head Rotary Head Milling Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
X6436
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Table Size
1320X360 mm
Z-Axis Travel
400mm
RAM Travel
500mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990
Product Description
| Universal Milling Machine X6436 |
| Specifications | X6436 |
| Table size | 1320x360 mm |
| X-axis travel (manul) | 1000mm |
| Y-axis travel (manul) | 300mm |
| Z-axis travel | 400mm |
| Distance vertical spindle to table surface | 200-650mm |
| Distance vertical spindle to column surface | 175-590mm |
| Ram travel | 500mm |
| Spindle taper | ISO50(V) / ISO50(H) |
| Spindle speed range (Vertical) | 60-1750rpm (12 steps) |
| Spindle speed range (Horizontal) | 58-1800rpm (12 steps) |
| T-slot size | 14mm/95mm/3 |
| Feeding rate (X/Y) | 22-420mm/min |
| Feeding rate (Z) | 8-267mm/min |
| Rotation range of spindle | ±35º |
| Table swivel angle | ±35º |
| Main Motor power | 4KW (V/H) |
| N.W/G.W | 2200/2480kg |
| Standard Accessories | Optional Accessories |
| Machine Work lamp | Digital readout system |
| Coolant system | Big table 1600mm |
| CE electrical cabinet | Spindle protect guard |
| Pendent control station | Slotting head |
| Drill chuck | Deluxe pendent control station |
| Drawbar | Dividing head device |
| Chip tray | Rotary table |
| Manual lubrication oil pump | Clamping kit |
| Swivel worktable | Vice |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
