Dima Combine Harvester Harvesting Machine Agricultural Machinery Corn Picker Harvester

Product Description

Company Profile
Ruiyuan Holdings Group is located in Qingdao West Coast New District and is one of the top 100 private enterprises in Shandong Province. Registered capital of 800 million yuan, total assets of more than 20 billion yuan, the existing staff of more than 9200 people. Involved in engineering construction, manufacturing, energy and power, health care, port logistics and other industries, business geography from the domestic provinces and cities to extend to the Asia-Pacific, the Middle East, Pan-Russia, Europe, Africa, North America, Latin America and other places.
Ruiyuan Holdings Group International Trade Co., Ltd., relying on the advantages of Ruiyuan Group's various industrial sectors and its own factories, to provide customers around the world with a comprehensive and stable supply chain resources and quality services.
After eight years of market verification, Ruiyuan Dima brand has set up a brand image of "high-end and reliable" in users' mind, and is a high-end brand sought after by users in the target market. Meanwhile, it has been recognized by industry associations, and has successively won the Product Technology Innovation Award, the Product Application Contribution Award, the TOP50 Market Leadership Award, the Technological Progress Award, etc.
In the future, we will continue to uphold the "green, science and technology, a better future" business philosophy, to build the company into a domestic iconic high-end agricultural equipment manufacturing enterprises, and strive to become one of the main promoters of the upgrading of China's agricultural equipment industry.
The company is mainly engaged in the R&D, production and sales of multi-functional self-propelled combine harvester and high-horsepower tractor, and is the director unit of China Agricultural Machinery Industry Association, the member unit of China Agricultural Machinery Circulation Association and the director unit of China Agricultural Mechanisation Association. It has obtained ISO9001 quality management system.
Product Description

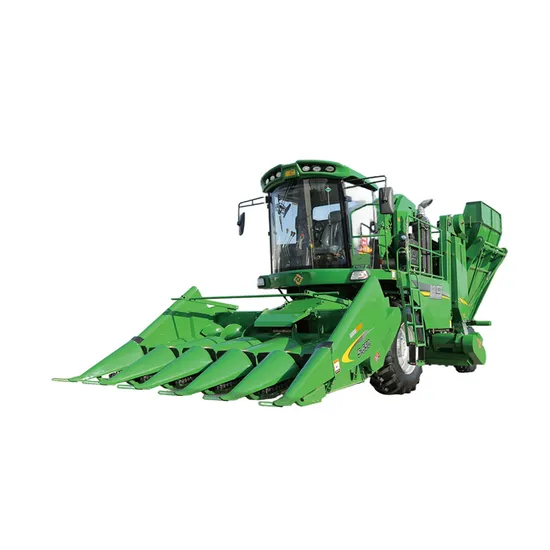

Model name	4YZL-6 (shenlong)self-propelled corn grain combine harvester
Structural Style	Wheeled,Picking ears,Direct harvesting of grains
Mating engine type specification	YCA07P260-T400(National IV)
Mating engine power rating (kW)	191
Mating engine rated speed (r/min)	2200
Overall dimensions (L×W×H)	10500×4200×3900
Whole machine weight (kg)	12000
Row spacing (mm)	650
Working width (mm)	3970
Minimum Ground Clearance (mm)	390
Operating speed (km/h)	1.05-7
Operating productivity (km²/h)	1.1-1.5

Model name	4YZ-6D2 (ruilong)self-propelled corn grain combine harvester
Structural Style	Wheeled,Picking ears,Skin peeling,Straw recycling
Mating engine type specification	YCA07P210-T300(National IV)
Mating engine power rating (kW)	154
Mating engine rated speed (r/min)	2200
Overall dimensions (L×W×H)	9900×3500×3800
Whole machine weight (kg)	11300
Row spacing (mm)	300
Working width (mm)	3440
Minimum Ground Clearance (mm)	360
Operating speed (km/h)	1.05-7
Operating productivity (km²/h)	0.5-1.3

Model name	4YZL-6(menglang) self-propelled corn grain combine harvester
Structural Style	Wheeled,Stripping,Peeling,Straw recycling
Mating engine type specification	YCA07P260-T400(National IV)
Mating engine power rating (kW)	191
Mating engine rated speed (r/min)	2200
Overall dimensions (L×W×H)	8300×2700×3900
Whole machine weight (kg)	10000
Row spacing (mm)	600
Working width (mm)	2400
Minimum Ground Clearance (mm)	300
Operating speed (km/h)	1.05-7
Operating productivity (km²/h)	0.4-0.8

Model name	4QZ-4500(muwang)self-propelled forage harveste
Structural Style	Self-propelled Disc cutter
Mating engine type specification	YCK09P560-T400(National IV)
Mating engine power rating (kW)	480
Mating engine rated speed (r/min)	2200
Overall dimensions (L×W×H)	6800×3640×5600
Whole machine weight (kg)	10500
Row spacing (mm)	/
Working width (mm)	2430
Minimum Ground Clearance (mm)	180
Operating speed (km/h)	1.05-25
Operating productivity (km²/h)	1.4-2.8

Detailed Photos
Our Advantages
About Us
Corporate Team & Events
FAQ

Q: What information is essential for prompt and exact evaluation?A: Exact compression media, working pressure, required loading volume, acceptable manufacture/inspection standard, and any special requirements.Q: How do you do quality control in your factory?A: Quality is the first priority, the products are only allowed to leave the factory after 100% qualified by inspection, we will check again before shipment to ensure the quality, we also provide customers with up to 18 months of warranty!Q: Can you design according to specific client parameters?A: Yes, we can design exactly as per clients' parameters to satisfy their local environment and different needs.
