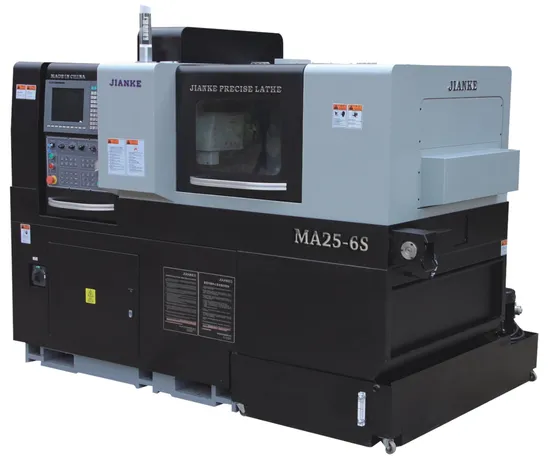

Jianke Ma25-6s 25mm High Precision Swiss Type CNC Lathe Sliding Head Swiss Lathe Machine for Metal
Basic Info.
Model NO.
MA256S
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.003
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
CNC System
Syntec
Transport Package
Waterproof Wood Box
Trademark
Jianke
Origin
China
Product Description
Product Description| Swiss type CNC lathe double spindle 6 axis model MA25-6S | Main spindle & Sub spindle |
| ·excellent performance·ability powerful·Operate flexbile | ·Main and sub spindle C axis stantard configration,complete functions ·Excellent performance multi types of tools coordinate reasonably,multi tool frame rasonably option ·rotary guide sleeve,no guide bush freely option, save material high benefit. |
Detailed Photos
Product Parameters
| Double Spindle Swiss CNC Lathe MA25-6S | |||
| System | Taiwan SYNTEC | Syntec210TB-A | |
| Control channels | Dual channel | ||
| Minimum setting unit | 0.001mm | ||
| Machining Ability | Max processing diameter | 25 mm | |
| Maximum single feeding length | Rotary guide bush | 195mm | |
| Without guide bush | 1:2.5D(Dia:Length) | ||
| Main spindle max drilling Dia | axial (main spindle) | Φ10mm | |
| Main spindle tapping Dia | axial | M8 | |
| Rotary tools max drilling Dia | radial | Φ8mm | |
| Rotary tools max tapping Dia | radial | M6 | |
| Sub spindle max drilling Dia | Axial (sub spindle) | Φ8mm | |
| Sub spindle max tapping Dia | axial | M6 | |
| Tools | Tool base arrangement | Upper row tool base | |
| Main spindle O.D. tools | 6 pieces | 1*16X16mm+5*12X12 | |
| Main spindle side rotary live tools | 4 pieces | 2*ER11+2*ER16 | |
| Main spindle end face fixed tool | 4 pieces | ER11/ER16 | |
| Sub spindle end face fixed tool | 4 pieces | ER11/ER16 | |
| Sub spindle end face rotary tools | 3 pieces | ER11/ER16 | |
| Sub spindle side rotary tools | 4 pieces | ER11/ER16 | |
| Sub spindle O.D. turning tools | 2 pieces | 12X12mm | |
| Spindles | Main/Sub spindle type | Internal oil cooling electric spindle | |
| Main/Sub spindle speed | 10000rpm/min | ||
| Main/Sub spindle indexing | 0.001° | ||
| Main/Sub spindle through hole Dia | 26mm | ||
| Main/Sub spindle height | 1018.5mm | ||
| Motors | Main spindle power(Rated/Max) | 2.5kw/3.7kw | |
| Sub spindle power(Rated/Max) | 2.5kw/3.7kw | ||
| Main/Sub spindle rotary tools motor power | 1.1kw | ||
| Main spindle side rotary tools speed | ER11*2 pieces | 10000rpm/min | |
| ER16*2 pieces | 6000rpm/min | ||
| Sub spindle rotary tools speed | Side rotary tools | 6000rpm/min | |
| End face rotary tools | 6500rpm/min | ||
| Moving axis | 6 axis | X1,Y1,Z1,X2,Y2,Z2 | |
| Rapid feeding speed | X1,Y2 | 24m/min | |
| Y1,Z1,X2,Z2 | 32m/min | ||
| Motor power of moving axis | 1.0kw | ||
| Others | Parts collector | Short parts | Belt conveyor to collect parts |
| Long parts | rear ejection from sub spindle | ||
| Power capacity | 15kw | ||
| Air pressure | Above 0.4MPa | ||
| Capacity of machining oil tank | 250L | ||
| Lathe size | 2.4m×1.4m×1.7m | ||
| Lathe weight | 3050KG | ||
Certifications
Packaging & Shipping
Company Profile
Founded in 1999, Jianke Machinery Co., Ltd. is one of the earliest domestic enterprises that involve in the independent research and development of Swiss type precision CNC lathe. The company covers an area of 30,000 square meters. At present, Nanjing Jianke Machinery Co., Ltd. has gradually developed into a machinery manufacturing enterprise integrating R&D, design, manufacturing, sales, installation, service, and imp&exp.
