Suji Vmc Heavy-Duty CNC Lathe Milling Machine Center Metal Lathe Tools
| US$22,350.00-46,895.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC 850S
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
ISO 9001
Condition
New
Process G Range Xyz
800X550X550mmmm
Spindle Nose to Table
120-670mm
Spindle Center to Column Surface
595mm
Machine Size
2500X2000X2200mm
Weight
4800kgs
Spindle Taper
Bt40
Spindle Speed
Direct 12000rpm
Table Size
1000X550
T Slot
3X18X130
Max Load
500
Transport Package
Steel Case, Plywood Case
Specification
table size 1000*500mm
Trademark
Suji
Origin
China
HS Code
8457101000
Production Capacity
1000sets/Year
Product Description
Company ProfileSuji Intelligent Equipment Jiangsu Co., Ltd
Suji Intelligent Equipment Jiangsu Co., Ltd was established in 2018 and is located in Jiangsu Shuyang National Economic Development Zone. We specialize in CNC machine tools, vertical machining centers, and offer comprehensive services including production, research and development, sales, and service. Our professional technical team has years of experience in CNC machine tool manufacturing, ensuring high-quality and cost-effective machine tools for our customers.
Major Products:
Vertical machining center series
Horizontal machining center series
Gantry machining center series
Flat rail CNC lathe
Inclined rail CNC lathe
Our machine tools are designed for high speed, rigidity, performance, and efficiency, making them the preferred choice for industries such as communication, consumer electronics, medical, LED, automotive, aerospace, and more.
We have a strong research and development team with years of manufacturing experience and are ISO9001 quality system certified. Our commitment to quality and service drives our business philosophy of creating value for customers, opportunities for employees, and benefits for society. We provide professional and sincere service, ensuring high-quality products and comprehensive technical support throughout the customer journey.
We aim to develop together with our partners and create a better tomorrow for our customers and markets.
Product Description
Product Parameters

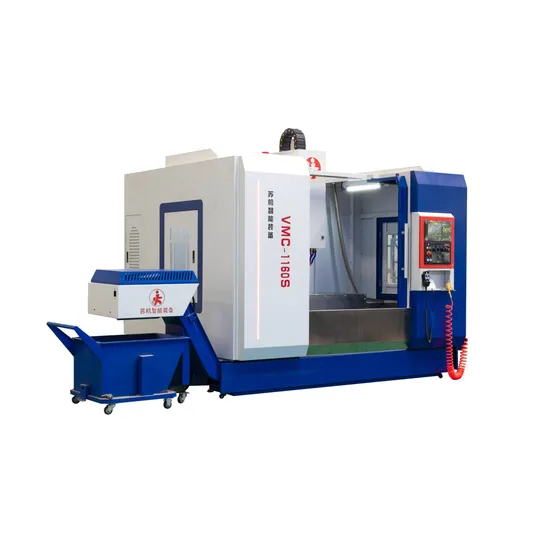

| S/Model | Unit | VMC640S | VMC850S | VMC855S | VMC1160S | VMC1370S | VMC-1580S |
| Machining Range | |||||||
| X axis travel | mm | 600 | 800 | 800 | 1100 | 1300 | 1500 |
| Y axis travel | mm | 400 | 500 | 550 | 600 | 700 | 800 |
| Z axis travel | mm | 450 | 500 | 550 | 600 | 700 | 700 |
| Spindle nose to table | mm | 150-600 | 150-650 | 120-670 | 120-720 | 110-810 | 130-830 |
| Spindle center to column | mm | 470 | 545 | 595 | 645 | 750 | 810 |
| Workbench size | |||||||
| Table Dimension | mm | 700x420 | 900x500 | 1000x550 | 1200x600 | 1400x700 | 1800x800 |
| T-slot Dimension | mm | 3x14x120 | 3X18X130 | 5X18X90 | 5X18X100 | 7X18×100 | 22X5X140 |
| Max Load | kg | 250 | 500 | 500 | 800 | 1000 | 1500 |
| Spindle | |||||||
| Taper | BT40 | BT40 | BT40 | BT40 | BT40/BT50 | BT40/BT50 | |
| Max Speed | rpm | Direct 12000 | 8000-1000rpm | ||||
| Infeed System | |||||||
| G00 fast infeed(Axis X/Y/Z) | m/min | 48/48/48 | 48/48/48 | 48/48/48 | 36/36/36 | 36/36/36 | 36/36/36 |
| G01 cutting infeed | m/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Tool Magazine | |||||||
| Type | type | Disc | Disc | Disc | Disc | Disc | Disc |
| Capacity | unit | 24 | 24 | 24 | 24 | 24 | 24 |
| Machine Dimension | |||||||
| Length | mm | 1800 | 2300 | 2500 | 3200 | 3600 | 3850 |
| Width | mm | 2400 | 2800 | 2000 | 2400 | 3300 | 3100 |
| Height | mm | 2300 | 2700 | 2200 | 2800 | 2900 | 2900 |
| Weight | kgs | 4600 | 4600 | 4800 | 7500 | 10500 | 12000 |
Brands of Main Parts
| Part Name | Origin | Manufacturer | Model |
| CNC system | FANUC, Japan | FANUC | 0i-MF PLUS(Type 3) |
| Servo feed motor | FANUC, Japan | FANUC | |
| Servo spindle motor | FANUC, Japan | FANUC | |
| Servo integrated driver | FANUC, Japan | FANUC | |
| Spindle group | Taiwan | Royal/Kenturn | BT40-φ150 |
| Roller screw | Taiwan | HIWIN/PMI | FDC4012 |
| Linear guide rail | Taiwan | HIWIN/PMI | 45#/45#/45# |
| Spindle bearing | China mainland | NSK | |
| Unclamping Cylinder | Taiwan | Haocheng | 4.5T |
| Disk type tool magazine | Taiwan | Ammach/Tokuda/Okada | BT40-24T |
| Locking nut | Taiwan | Svit | M30×1.5P/ M35×1.5P |
| coupling | Japan | Sanmu | |
| heat exchanger | Japan | Miki Pully | EA-02W/220V |
| Screw bearing | Japan/Germany | NSK/FA.G | 30TAB062 |
| Oiling machine | Taiwan | Ishan | |
| Main electrical components | France | Schnneider | |
| Pneumatic components | Taiwan | TWSNS | |
| Chain chip conveyor | China mainland | SUJI |
