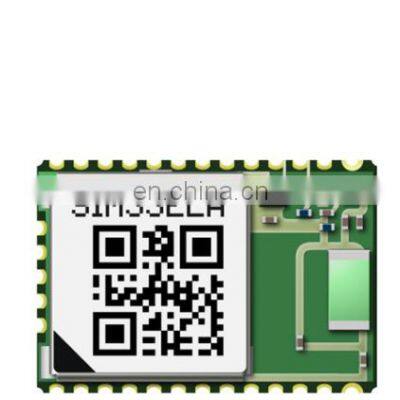

SIMCOM GNSS GPS Receiver Module with Antenna SIM33ELA

Product Description

Product Description
DescriptionSIM33ELA IntroductionSIMCom presents a high performance GPS module accompany with GNSS antenna - SIM33ELA. This is a standalone GNSS module embedded a linear antenna. Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.Mechanical data• Dimensions: 14*9.6*2.15 mm• Weight: 0.5gFeatures• Support GPS/GLONASS/Galileo/QZSS• Support EASYTM self-generated orbit prediction• Support EPOTM orbit prediction• Support AGPS• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)• Support Jamming removing function• Low-noise amplifier has been integratedInterfaces• Serial interfaces- UART• Digital I/O- TIMEMARK(PPS)- 3D-FIX- FORCE-ON • Protocols- NMEA- PMTKSupport evaluation products• SIM68 EVB KIT with USB V2.0 full speed interfaceElectrical data• Power supply +2.8V ~4.3V• Backup power +2.0V ~4.3V• Power consumption2 3.3V (typical)- Acquisition: 25mA- Tracking: 20mA- Backup: 14μAPerformance data• Receiver type- 33 tracking / 99 acquisition- channel GNSS receiver• Max. update rate- 10Hz• Sensitivity1- Tracking: -165 dBm- Reacquisition: -160 dBm- Cold starts: -147 dBm• Time-To-First-Fix2- Cold starts: 28s (typical)- Warm starts: 26s- Hot starts: <1s- EPO Assist: 13s (CTTFF)• Accuracy- Automatic Position3: 2.5m CEP- Speed4: 0.1m/s• Operation temperature: -40℃~+85 ℃Certifications•CE————————————————————1.Demonstrated on EVB KIT at library2.All SV @ –130 dBm3.50% 24 hr static, -130dBm4.50%@ 30m/sWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
