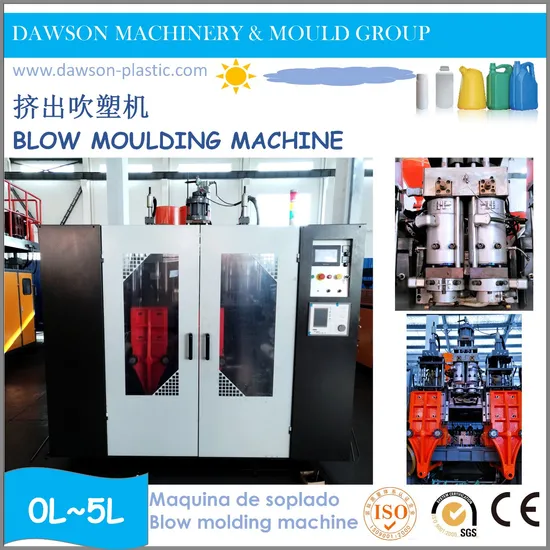

0L-5L Plastic Bottles Two Station Blow Molding Machine

Product Description

Die head: Center-feed die head Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment wellBlowing device: with upper blowing type Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle. Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand. How to Load & Delivery
Blow molding machines are packed with wooden pallets, covered with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to you for reference. All your machines will be finished and tested within 45~55 days.
Packing:
Standard export packing for sea freight by 40' CY
WARRANTY:
We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free.
TRAINNING,INSTALLATION AND TEST
The seller should train two or three operating man for free. (Travel and hotel is by buyer's expenses.)
The buyer should place the machine to the right position and inform the supplier after the machine reach the buyer's factory. The seller will send the engineer to test run the machine until it is running in normal state. The buyer will bear his round-trip air tickets, accommodation and hotel so on in BUYER'S side. Besides, the buyer will pay 90USD/day/person for technology fee.

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	20L
	Output capacity	180~200 pcs/h
	Size	4.6×3×2.4(M)
	Weight	8.2T
system	Specification	Parameters	Note
Plasticizion system	Summarize	High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw	∮90mm,L/D ratio 25, 38CrMoALA	Cooling system available
	Plasticization	130Kg/H	HDPE
	Heating Zone	4 Aluminum Heater	Automatic heating
	Heating power	8KW/H
	Extrusion Motor	Three phase asynchronous motor (380V,50HZ)
	Cooling Fan	4zone	Automatic cooling
Extrusion system	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	∮180mm
	Heating zone	4 Stainless steel heating cycle
	Heating power	5~7KW
Clamping system	Summarize	High intension, rigidity, center mold locking, stable mould opening and clamping system
	Clamping force	108KN
	Template distance	240~660mm

Weight
