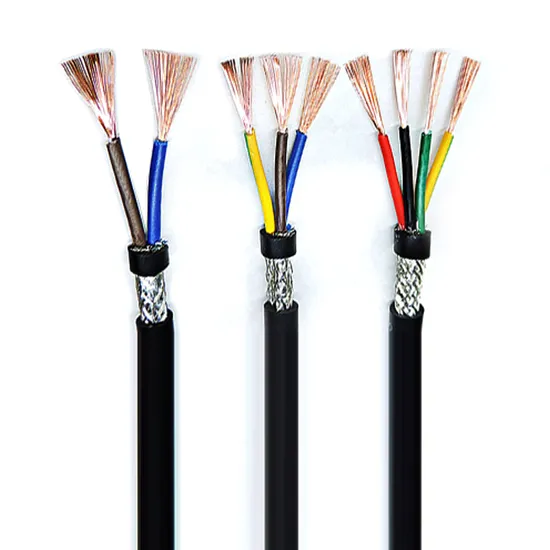

UL2464 Multi Conductor Shielded Copper Flexible Power Cable PVC Sheath Electrical Cable
| US$0.02-0.10 | 2,000 Meters (MOQ) |
Basic Info.
Model NO.
UL2464
Application
Communication Electronic Products, Industry,
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CE, RoHS, VDE, UL
Brand
Bort
System
Radio System
Usage
Door, Smoke, Fire, Auto
Signal Transmission
Interal Wiring of Vehicle
Sample
Free Sample Available
Packaging
610m/Roll
Color Available
Any Colors
Delivery Time for Samples
7-10days
Delivery Time for Mass Production
7-30days
Appliance
Internal Wiring of Electronic&Electrical Equipment
Standard of Production
RoHS & Reach
Factory Management Standard
ISO9001:2008
Annual Capacity
300, 000kms
Transport Package
Roll or Spool Packing, Stretch Film Wrapping, Car
Specification
32-16AWG
Trademark
Bort
Origin
Zhangzhou
HS Code
8544492900
Production Capacity
300000km/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg
Product Description
UL2464 Multi Conductor Shielded Copper Flexible Power Cable PVC Sheath Electrical CablePRODUCT DESCRIPTION:
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Cores cabled under AL-MYLAR shield
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1& FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★Sound broadcast,audio,instrumentation & computer
| Conductor | Finished product | ||||
| AWG/NO.OFCOND | NO.of Cond | Insulated Thick. | Braid shield | Jacket Thick. | Outside Thick. |
| No./mm | mm | m/n/d | mm | mm | |
| 24×2C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.35 |
| 24×3C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.50 |
| 24×4C | 11/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.80 |
| 24×5C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.10 |
| 24×6C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.45 |
| 24×7C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.50 |
| 22×2C | 17/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.75 |
| 22×3C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 4.95 |
| 22×4C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.30 |
| 22×5C | 17/0.16 | 0.25 | 16/7/0.10 | 0.80 | 5.65 |
| 22×6C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.05 |
| 22×7C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.10 |
FAQ 1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Xiamen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
