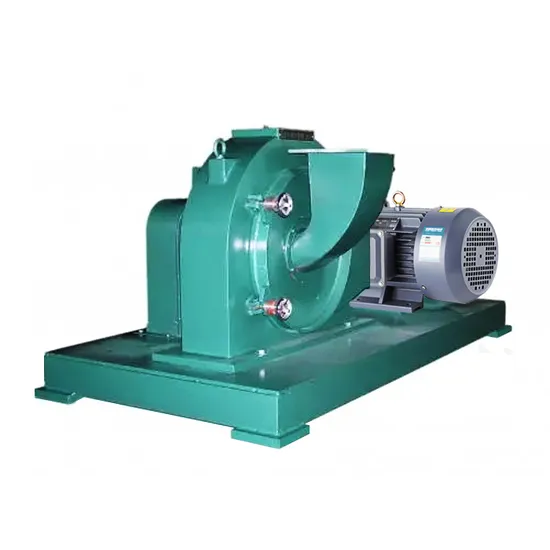

High Efficiency Superfine Powder Pulverizer

Product Description

Performance Advantage:
01. The KEM series pulverizers are innovatively developed a new generation pulverizer by our factory, leading in various performance indicators, suitable for processing a variety of materials, capable of handling both the rmoplastic and fibrous materials, with uniform product texture and the ability to grind to micro powder and ultrafine powder fineness. It is currently an ideal energy-saving micro powder production equipment with good performance and high efficiency.
02. It is eflective pulverizer, capable of simultaneously completing two processing steps of micro powder crushing and micro powder sorting.
03. The machine has air cooling function, temperature is lower during pulverzing (if there is a special need, a deep water cooling structure can be added). It is particularly suitable for processing thermoplastic and fibrous materials (such as biotechnology materials of chitin).Uniform product particle size and narrow distribution surface.
04. The blades adopts advanced technology and special treatment, which is easy to replace and has good wear resistance. Compact and reasonable structure, small size, low energy consumption, high efficiency. Smooth rotation, reliable sealing, no dust pollution, good self cooling function, simple installation. Easy disassembly and repair, convenient replacement of damaged parts.
Application:
Chemical, Pharmaceutical, Intermediates, Tobacco, Pesticide, Pigments, Coatings, Dyes, Ceramics, Pigments, Glazes, Bamboo charcoal, Carbon black, White carbon black, Graphite, Crystals, Colloids, Non-metallic minerals, Food, Feed and Biotechnology industry
Technical Parameter

Model	Motor Rev.	Fineness	Rotor Diameter	Main Motor	Capacity
KEM350	4500	10 - 325mesh	350mm	15KW	150 - 500kgs/hour
KEM450	3000	10 - 325mesh	450mm	22KW	250 - 1200kgs/hour
KEM550	3000	10 - 325mesh	550mm	30KW	450 - 1500kgs/hour
KEM750	2280	10 - 325mesh	750mm	37KW	600 - 2000kgs/hour
