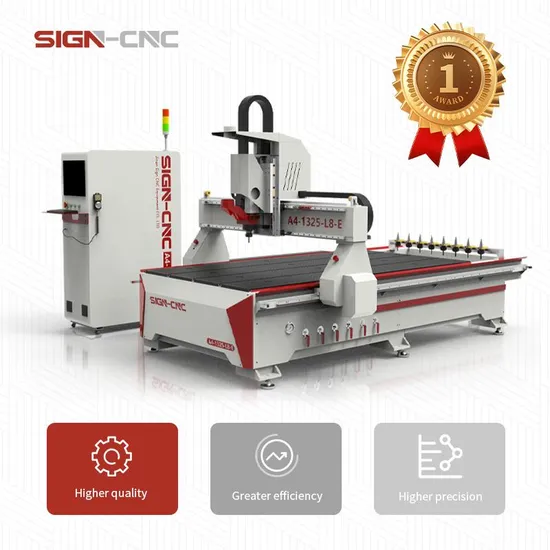

New Atc CNC Router with Economic Price 1325 2030 Woodworking CNC Machine A4-1325-L8-E CNC Router Machinery for Cutting and Engraving
Basic Info.
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
CNC Style
Atc CNC Router
Working Area
1300*2500mm
Z Axis Height
300mm
Spindle
Atc Hqd 9kw Air Cooling
Inverter
Folinn11kw
Motor
Inovance 1500W Servo Motor and Driver
Dust Collector
3kw Double Bags
Reduce
Japan Shimpo
Control System
Shanlong L68
Working Table
Vacuum Table with T-Slot
Vacuum Pump Power
5.5kw
Rail
Tbi 25mm Square Guide Rail
Machine Voltage
3phase 380/220V
Oil Injection System
Automatic Type
Warraty
2 Years
Transport Package
Wooden Package
Specification
1300*2500mm
Trademark
SIGN
Origin
Jinan City, Shandong Province, China
Product Description
Product DescriptionNew ATC CNC Router with Economic price 1325 2030 woodworking cnc machine A4-1325-L8-E CNC Router machinery for cutting and engraving
Detailed Photos
Product Parameters
| Model | A4-1325-L8-E | A4-2030-L8-E |
| Working area | 1300*2500mm | 2000*3000mm |
| Z feeding | 300mm | |
| Frame structure | Steel casting-welding | |
| Type of table cover | Vacuum table with T-slot | |
| Vacuum pump | 5.5kw air cooling | |
| Z axis transmission | Ball screw and 25 square guide rails | |
| X Y axis transmission | Taiwan 25 square guide rails + Helical rack | |
| Max. Rapid Travel Rate | 33000mm/min | |
| Max. Working Speed | 25000mm/min | |
| Command Code | G code * .u00 * .mmg * .plt | |
| Operating voltage | AC 380V/50Hz | |
| Spindle power | HQD 9.0 KW | |
| Tool Magazine | 8 - 12 | |
| Type of cooling | Air cooling | |
| Spindle Speeds | 0-24000rpm/min | |
| Drive motor type | Inovance 1500w servo motor and driver | |
| operating system | ShanlongL68 | |
| Dust Collector | 3kw with double bags | |
| Lubrication system | Automatic | |
| Supported software | Artcam software, Type3 software | |
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree | |
| Warranty | Two year | |
Application and Sample
Mainly used in woodworking industry, advertising industry, craft industry, mold industry, electronics industry, construction industry, printing and packaging industry , Decoration industry, tombstone industry, crystal product industry and other
