Evaporative Cooling Pad Cooling Pad Wall with PVC Frame for Poultry Pig Swine Chicken Layer Broiler Cow House Farming
Basic Info.
Model NO.
7090 7060
Usage
Evaporative Air Water Cooling Ventilation
Application
Chicken Pig Cow
Power Source
Electric
Certification
ISO9001:2008, CE
Condition
New
Warranty
2 Years
Common Type
7090, Brown Color
Paper Material
Wood Pulp
Paper Weight
100g/Sqm
Height
1500/1800/2000mm
Width
600/300mm
Thickness of Pad
150/100mm
Paper Sheets
86 Sheets for Width 600mm
Cooling System
Water Cooling
Frame Available
Galvanized Sheet, Aluminum Alloy, Stainless Steel
Product Name
Karft Paper Evaporative Cooling Pad
Apply
Poultry House Greenhouse Industrial Workshop
Fuction
Evaporative Air Water Cooling Ventilation
Transport Package
Paper Carton
Specification
7090 7060 5090
Trademark
Yuyun Sanhe
Origin
China(Mainland)
HS Code
4823909000
Production Capacity
120cbm/Day
Product Description

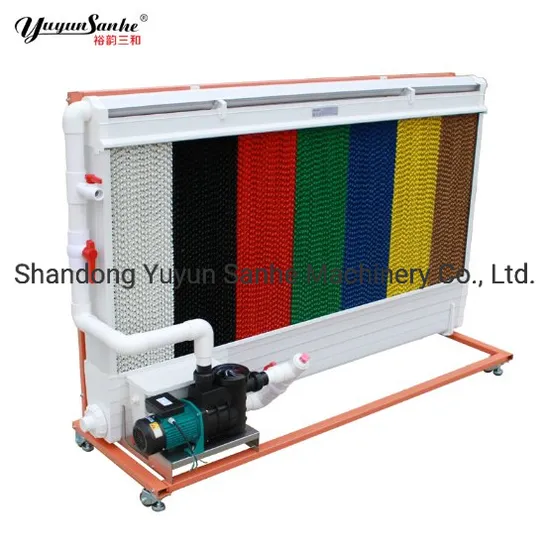

Evaporative Cooling Pad with PVC FramePVC Frame Advantages: 1. New modular design, easy to install and remove, convenient to clean or replace the cooling pad paper.
2. Using PVC material, anti-aging, resistant to corrosion and rust.
3. No need to add external water tank as the bottom watergutter contains the entire water requirment of the pad climate system.
4. The float valve system can fill water automatically when the water level is low.
5. Matching use with the water-distribution pipe, the special designed deflector can make the water soaking into the cooling pad evenly.
6. The cooling pad support can realize the water circulation perfectly and prevent the rodents from entering the watergutter. Sideways Connection:
Middle Connection:
Water Pump Parameters:
| Input Power | Parameter | Cooling Pad Length |
| 0.37KW Pump | 380V/50HZ/3Phase | <6m |
| 0.55KW Pump | 380V/50HZ/3Phase | 6-10m |
| 0.75KW Pump | 380V/50HZ/3Phase | 10-15m |
| 0.9KW Pump | 380V/50HZ/3Phase | 15-24m |
